WellFusion™ Elite 240K - Commercial Well Sulfur Breaker

When Sulfur Odor Compromises Professional Operations

Hydrogen sulfide does not announce itself quietly. The rotten egg smell permeates restrooms, contaminates kitchen prep areas, and makes showers unusable for guests and staff. In commercial environments, sulfur odor becomes a liability that affects customer experience, operational cleanliness, and equipment longevity. Visitors notice immediately. Staff complaints increase. Water that should support daily operations becomes water that undermines confidence.

Sulfur contamination in commercial well systems signals deeper water chemistry issues. Hydrogen sulfide forms naturally in groundwater through bacterial activity and mineral interaction, but its presence often coincides with iron bacteria, biofilm development, and accelerated corrosion inside pipes, valves, and water-dependent equipment. Standard filtration cannot address the chemistry of hydrogen sulfide. Activated carbon alone lacks the catalytic surface required to neutralize sulfur compounds effectively under continuous commercial demand. When odor persists, damage continues unseen, corroding fixtures, boilers, and water heaters while degrading water quality throughout the facility.

The WellFusion™ Elite 240K treats hydrogen sulfide at the point of entry using Aldex C-800 10% cross-linked resin housed in an 18" × 65" mineral tank. This system delivers 240,000 grains of sulfur reduction capacity designed for commercial properties with continuous water use across multiple bathrooms, kitchens, and service areas. Flow rate capacity reaches 60 gallons per minute at stable operating pressure, maintaining steady water delivery across multi-story buildings with supply pressure between 20 and 80 psi. The Clack WS2 (2") control valve manages programmable backwash cycles at approximately 11 to 12 gallons per minute, regenerating the media bed and preventing sulfur bacteria accumulation. For facility managers addressing iron and sulfur removal systems for well water homes at commercial scale, this system provides the capacity and engineering required to eliminate odor before water reaches any fixture.

The Engineering Behind Commercial-Grade Sulfur Neutralization

Aldex C-800 cross-linked resin operates through ion exchange and catalytic oxidation, converting hydrogen sulfide into stable, odorless compounds without creating secondary treatment demands. This resin is engineered with a modified surface structure and 10% cross-linking that provides superior durability and resistance to fouling under high-volume commercial use. The WellFusion™ Elite 240K uses premium resin sourced from American manufacturers certified to NSF/ANSI 44 and ISO 9001:2000 standards, ensuring consistent performance and long-term durability in demanding commercial environments.

Every component supports reliable operation under continuous demand. The 240,000-grain capacity provides uninterrupted sulfur reduction across seasonal water quality fluctuations common in commercial well systems. The Clack WS2 valve delivers precise, programmable backwash cycles that restore media efficiency and prevent channeling or fouling during extended service intervals. Installation accepts 2" NPT inlet and outlet connections, includes a bypass valve for maintenance isolation, and operates on standard 110V power through an included plug-in transformer. Backwash flow demand remains at approximately 11 to 12 gallons per minute, maintaining media longevity without excessive water usage. Operating temperature range spans 40° to 110° F, and operating pressure tolerance extends from 20 to 125 psi.

This system is designed for 10 to 15 years of reliable operation when maintained according to manufacturer guidelines. Regular injector and screen cleaning every 6 to 12 months prevents performance loss and protects downstream equipment. Proper installation includes adequate drain line access and confirmation that supply pressure remains within the operating range. When sulfur concentration exceeds resin capacity or iron fouling is present, pretreatment may be required. For comprehensive protection against well water bacteria in commercial settings, whole house UV water purification systems for homes provide an additional layer of defense as part of a coordinated treatment strategy.

Operations Without Sulfur Odor Across the Facility

Odor-free water restores professional confidence in daily operations. Restrooms release no sulfur vapors. Kitchens maintain sanitary standards without competing with rotten egg smells. Guest showers deliver the experience expected from clean facilities. Staff work without ongoing complaints about water quality. Water heaters and boilers operate more efficiently without sulfur-induced corrosion, and plumbing systems remain cleaner over the long term. Fixtures maintain their appearance longer without exposure to reactive compounds that accelerate wear and discoloration.

The WellFusion™ Elite 240K is built for commercial properties that demand consistent performance across all water outlets during peak occupancy and usage periods. Whether supporting simultaneous showers across multiple units or continuous kitchen operations, this system maintains steady flow and complete odor elimination. That is what commercial operations with demanding water use require. That is what American manufacturing delivers. Pure Water. Pure Trust.

Performance

• Ideal For: Commercial/Industrial
• System Capacity: 240,000 Grains
• Occupants: Commercial
• Household Size: Up to ~8,000 sq ft
• Number of Bathrooms: Commercial
• Media Volume: 8 Cu.Ft
• Media Type: Water Softener - Aldex C-800 10% Crosslinked Resin
• Service Life: ~ 10-15 years
• Max Flow Rate: 60 gpm
• Backwash: ~11–12 gpm

Technical Specifications

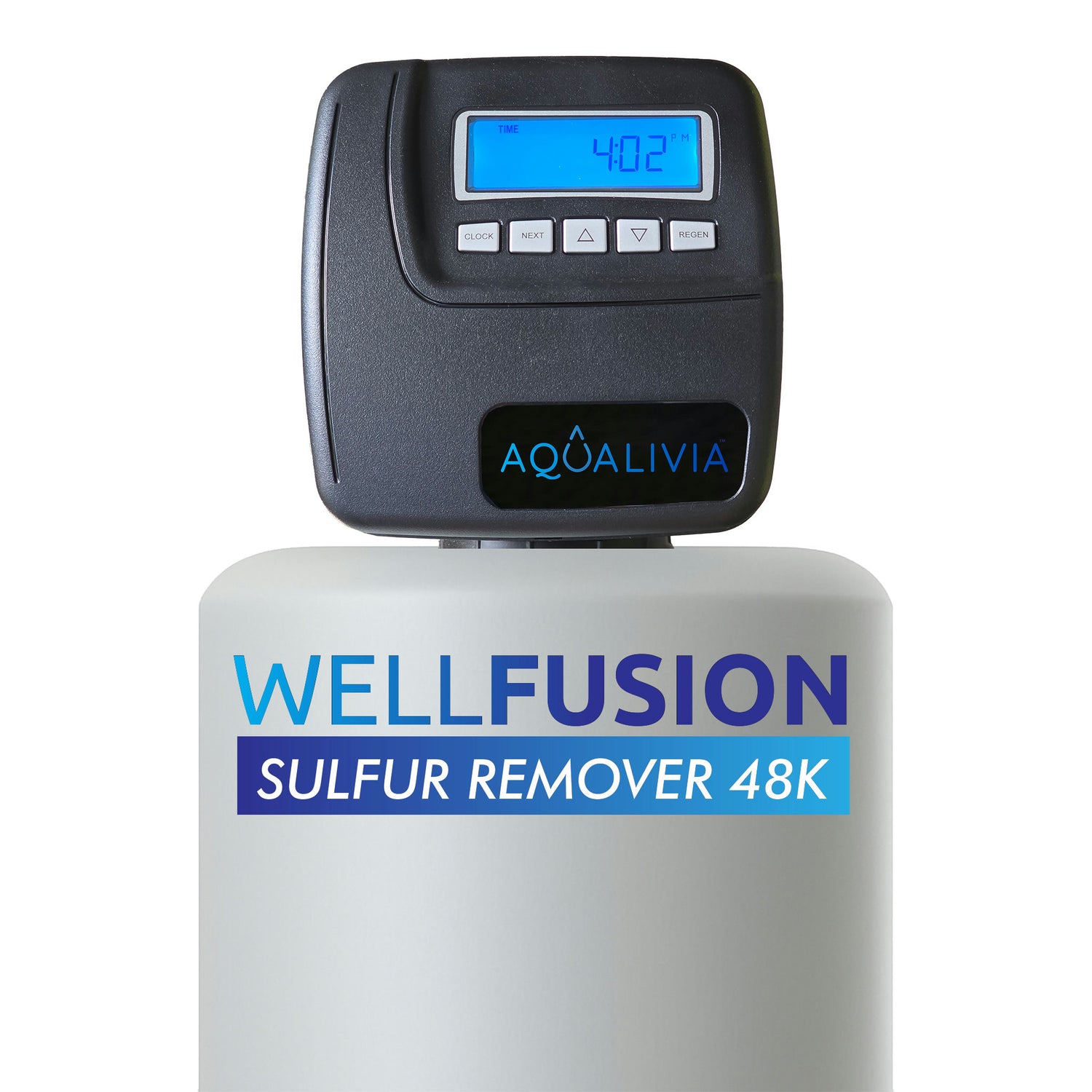

• Valve: Clack WS2 (2")
• Input & Output Line Size: 2” NPT
• Tank Dimensions: 18"x65"
• Product Dimensions: 18"L × 18"W × 73"H
• Product Weight: 556 lb, 253 kg
• Power Requirement: 110V Standard (Plug-In Transformer Included)
• Bypass Valve Included: Yes
• Operating Pressures: Requires 20–80 psi supply pressure
• Drain Line: 1.5” Female NPT

Additional Components

• 1/2" Dia drain line tube 10' in length

Installation Time & Requirements

• Installation Type: Whole-House Point of Entry
• Estimated Installation Time: A professional water softener installation typically takes 8 to 16 hours, but this can vary depending on the complexity of the job and the type of system.

Commercial Systems – Production & Delivery Timeline

AQUALIVIA™ commercial systems are engineered based on project requirements. Many of these systems are custom-built, tested, and configured to ensure optimal performance for your specific application.

• Standard commercial configurations typically require 2 to 4 weeks for production

• Custom-engineered or large-scale systems may require up to 90 days depending on specifications, components, and current production schedule

• Orders placed after 12:00 PM ET begin processing the next business day

Order Updates & Communication

After your order is placed, the AQUALIVIA™ team will personally contact you to confirm all specifications.

Throughout the process, you will receive ongoing updates, including production status, testing progress, and estimated shipping readiness. Our goal is full transparency so you always know exactly where your project stands.

We build every system with precision and care, and while timelines may vary, we always aim to complete and deliver your system as efficiently as possible without compromising quality.

Estimated Transit Times (After Shipment)

• Ground Freight: 5 to 10 business days

• Pallet Freight (Large Systems): 5 to 10 business days

Freight Delivery

Large commercial systems are shipped via pallet freight. An adult must be present at delivery to inspect and sign for the shipment.

Inspection

Please inspect your system upon delivery and report any damage within 3 business days.

Optional Professional Installation

AQUALIVIA™ offers optional on-site installation for commercial systems.

If you would like our team to install the system at your facility, please contact us at:

info@AQUALIVIA.com

to request a custom installation quote.

International Orders

International shipping is available. Duties and taxes are the responsibility of the customer. All international sales are final unless covered under warranty.

Warranty:

At AQUALIVIA™, we stand behind the quality of our water treatment systems. Every product is carefully built to last, and we’re proud to offer strong warranty coverage to give you peace of mind.

What’s Covered

• Mineral Tanks: 10 years (up to 13" × 54"), 5 years for larger tanks.
• Control Valves: 5 years.
• Brine Tanks: 5 years.
• Accessories & Components: 1 year.
• AQUAREX™ Whole House Filter: 5 years.
• OZONEX™ Ozone Systems: 1 year.
• AquaVRay™ UV Systems: 1 year.
• HydroClear™: 1 year(system only)
• AquaRevive™ RO Systems: 1 year(system only)

What’s Not Covered

• Regular-use consumables (filters, resins, membranes, UV lamps, cartridges).
• Damage caused by misuse, freezing, flooding, power surges, or improper installation.
• Products used with non-AQUALIVIA™ parts or outside normal water conditions.

Our Promise

We’ll repair, replace, or provide a comparable solution if your system has a covered defect. Our goal is to make sure your AQUALIVIA™ system works the way it should, so you can enjoy clean, pure water with confidence.

👉 For warranty support, please contact Info@AquaLivia.com.

Maintenance Requirement:
