WellFusion™ Elite 600K - Commercial Well Iron Breaker

The Invisible Problem

Commercial well water often contains iron concentrations that exceed the treatment capacity of standard filtration systems. In restaurants, healthcare facilities, manufacturing plants, and multi-unit properties, untreated iron causes visible staining, metallic taste, and equipment damage that accumulates faster and costs more than residential systems ever face. Fixtures collect rust-colored deposits that resist cleaning. Dishwashers, steamers, and water heaters lose efficiency as iron sediment accumulates inside valves, lines, and heating elements. Laundry operations produce discolored linens. Process water contaminates product batches. What begins as minor discoloration gradually becomes operational downtime, compliance risk, and revenue loss.

When iron levels reach or exceed 10 parts per million, light-duty softeners and basic filtration equipment fail within months. The mineral load overwhelms resin beds, fouls media, and restricts flow in systems designed for lower contamination. Without intervention calibrated to commercial demand, iron infiltrates every water-dependent operation. Scale hardens inside boilers. Pressure drops across distribution lines. Equipment replacement cycles shorten. For facilities relying on private wells in iron-rich zones, targeted removal is not optional, it is foundational to operations. To understand how iron removal systems address contamination at varying scales, consider how catalytic media captures dissolved iron before oxidation triggers visible damage across an entire facility.

The Certified Solution

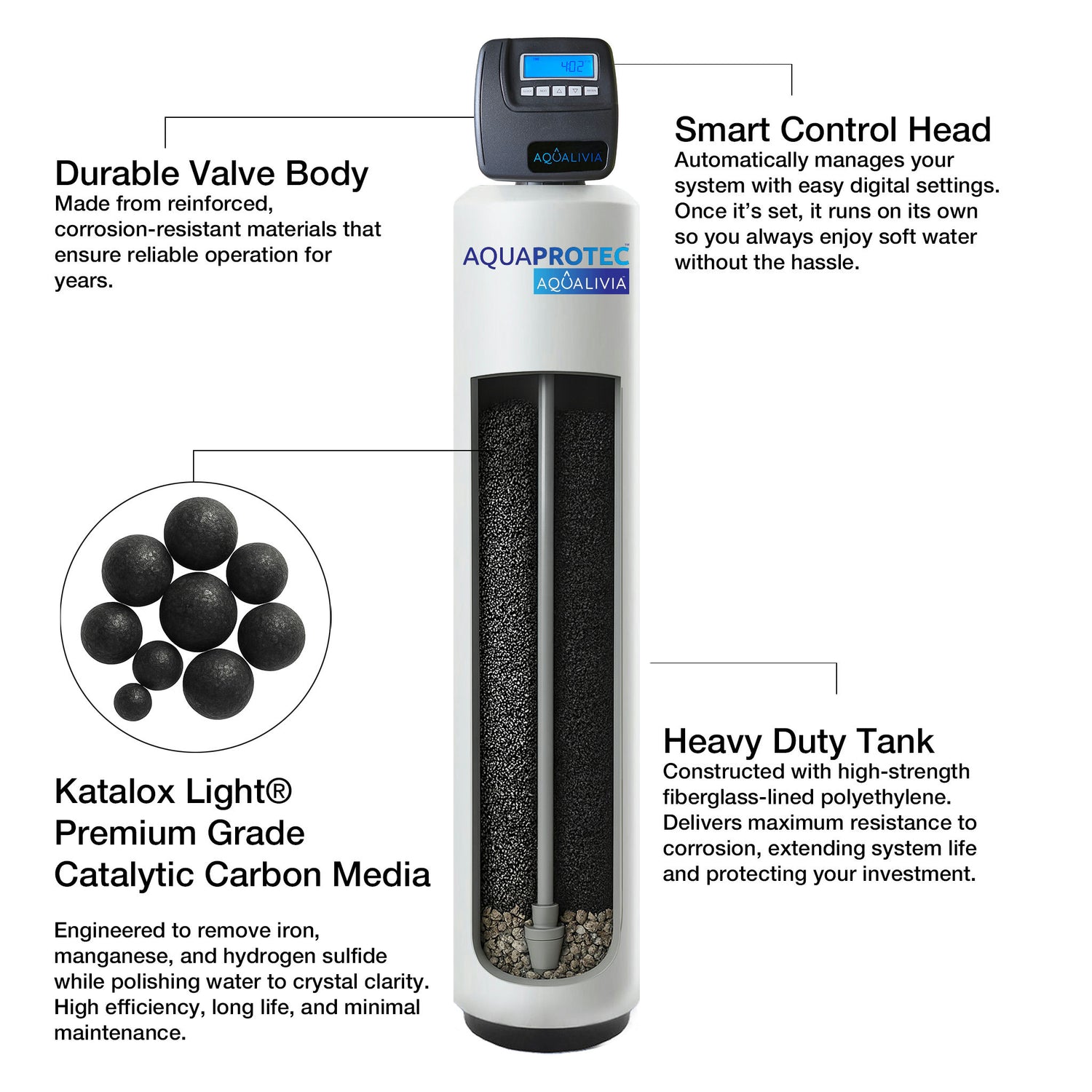

The WellFusion™ Elite 600K employs 20 cubic feet of Katalox Light, a catalytic filtration media engineered to oxidize and remove dissolved iron, manganese, and hydrogen sulfide at commercial flow rates. This manganese dioxide-coated zeolite accelerates oxidation, converting invisible ferrous iron into filterable ferric particles before water reaches process lines or fixtures. With a 600,000-grain capacity housed in a 30" × 72" mineral tank, this system supports operations exceeding 10,000 square feet with sustained flow rates up to 250 gallons per minute.

Built in the USA with NSF/ANSI 44 and NSF/ANSI 372 certified components, the system integrates a Clack WS3 3-inch control valve calibrated for high-efficiency backwash cycles and continuous operation. Every tank, valve, and fitting is inspected at our Florida facility before shipment. The catalytic media operates without chemical injection, permanganate dosing, or compressed air, relying instead on contact oxidation to capture contaminants during normal service flow. Automated backwash cycles regenerate the media bed and flush captured iron, maintaining treatment capacity without manual intervention or operational disruption.

The high-flow valve system distributes pressure evenly during service and ensures complete bed expansion during backwash, preventing channeling and media fouling. Chemical-free operation eliminates the complexity and safety concerns of permanganate handling while reducing long-term operating costs. The system is designed for ten to fifteen years of continuous service when operated within recommended parameters and maintained per specification. For facilities where iron contamination appears alongside persistent sulfur odor, explore how sulfur removal systems provide coordinated treatment when odor and staining occur together in high-demand environments.

Pure Water Living

After installation, water clarity improves within the first treatment cycle. Fixtures that required daily maintenance stay cleaner across extended intervals. Commercial dishwashers operate without iron staining on glassware or flatware. Laundry systems produce linens without orange discoloration. Process water meets quality specifications without mineral interference. Boilers and water heaters operate at design efficiency without iron sediment reducing heat transfer or restricting flow. The difference is measurable across every operational use. Equipment performs as engineered. Maintenance intervals extend. Compliance confidence returns. This is commercial-grade protection designed for real-world well water conditions at scale. Operations discover that water-dependent processes become more predictable, customer-facing water quality improves, and asset lifespan extends when iron no longer infiltrates daily operations. Fixtures maintain appearance standards, whites stay white, and preventive maintenance schedules become manageable. Pure Water. Pure Trust.

Performance

• Ideal For: Commercial/Industrial
• System Capacity: 600,000 Grains
• Occupants: Commercial
• Household Size: 10,000+ sq ft
• Number of Bathrooms: Commercial
• Media Volume: 20 Cu.Ft
• Media Type: Water Softener - Aldex C-800 10% Crosslinked Resin
• Service Life: ~ 10-15 years
• Max Flow Rate: 250 gpm (946 lpm) (56.8 m3 /h)
• Backwash: ~30 gpm

Technical Specifications

• Valve: Clack WS3 (3")
• Input & Output Line Size: 3" Female NPT or BSPT
• Tank Dimensions: 30"x72"
• Product Dimensions: 30"L × 30"W × 80"H
• Product Weight: 1,351 lb, 613 kg
• Power Requirement: 110V Standard (Plug-In Transformer Included)
• Bypass Valve Included: Yes
• Operating Pressures: Requires 20–80 psi supply pressure
• Drain Line: 3” Female NPT/BSPT “No Groove Lock”

Additional Components

• 1/2" Dia drain line tube 10' in length

Installation Time & Requirements

• Installation Type: Whole-House Point of Entry
• Estimated Installation Time: A professional water softener installation typically takes 8 to 16 hours, but this can vary depending on the complexity of the job and the type of system.

Commercial Systems – Production & Delivery Timeline

AQUALIVIA™ commercial systems are engineered based on project requirements. Many of these systems are custom-built, tested, and configured to ensure optimal performance for your specific application.

• Standard commercial configurations typically require 2 to 4 weeks for production

• Custom-engineered or large-scale systems may require up to 90 days depending on specifications, components, and current production schedule

• Orders placed after 12:00 PM ET begin processing the next business day

Order Updates & Communication

After your order is placed, the AQUALIVIA™ team will personally contact you to confirm all specifications.

Throughout the process, you will receive ongoing updates, including production status, testing progress, and estimated shipping readiness. Our goal is full transparency so you always know exactly where your project stands.

We build every system with precision and care, and while timelines may vary, we always aim to complete and deliver your system as efficiently as possible without compromising quality.

Estimated Transit Times (After Shipment)

• Ground Freight: 5 to 10 business days

• Pallet Freight (Large Systems): 5 to 10 business days

Freight Delivery

Large commercial systems are shipped via pallet freight. An adult must be present at delivery to inspect and sign for the shipment.

Inspection

Please inspect your system upon delivery and report any damage within 3 business days.

Optional Professional Installation

AQUALIVIA™ offers optional on-site installation for commercial systems.

If you would like our team to install the system at your facility, please contact us at:

info@AQUALIVIA.com

to request a custom installation quote.

International Orders

International shipping is available. Duties and taxes are the responsibility of the customer. All international sales are final unless covered under warranty.

Warranty:

At AQUALIVIA™, we stand behind the quality of our water treatment systems. Every product is carefully built to last, and we’re proud to offer strong warranty coverage to give you peace of mind.

What’s Covered

• Mineral Tanks: 10 years (up to 13" × 54"), 5 years for larger tanks.
• Control Valves: 5 years.
• Brine Tanks: 5 years.
• Accessories & Components: 1 year.
• AQUAREX™ Whole House Filter: 5 years.
• OZONEX™ Ozone Systems: 1 year.
• AquaVRay™ UV Systems: 1 year.
• HydroClear™: 1 year(system only)
• AquaRevive™ RO Systems: 1 year(system only)

What’s Not Covered

• Regular-use consumables (filters, resins, membranes, UV lamps, cartridges).
• Damage caused by misuse, freezing, flooding, power surges, or improper installation.
• Products used with non-AQUALIVIA™ parts or outside normal water conditions.

Our Promise

We’ll repair, replace, or provide a comparable solution if your system has a covered defect. Our goal is to make sure your AQUALIVIA™ system works the way it should, so you can enjoy clean, pure water with confidence.

👉 For warranty support, please contact Info@AquaLivia.com.

Maintenance Requirement:
