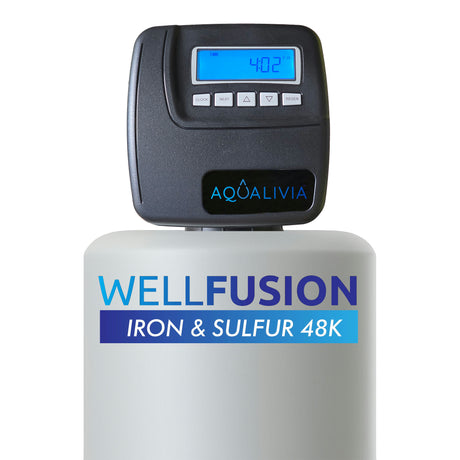

WellFusion™ Ultra 64K Iron & Sulfur Well System

The Invisible Weight of Hard Water, Iron, and Sulfur

Well water drawn from deep aquifers often carries the invisible burden of extreme hardness, dissolved iron, and hydrogen sulfide gas. These contaminants rarely appear alone. When combined, they create compounding damage that accelerates scale buildup, stains every fixture, and fills the home with persistent rotten egg odors. What begins as orange streaks in the shower quickly escalates to clogged valves, corroded water heaters, and laundry permanently discolored by iron oxidation. Sulfur odors intensify during heating, making showers and cooking unpleasant. Standard filtration fails because it addresses only surface symptoms while leaving the chemistry untreated.

Hard water magnifies these problems. Calcium and magnesium minerals bond with iron particles, forming dense scale deposits that restrict flow and damage every water-using appliance. Over time, untreated well water creates thousands of dollars in premature equipment replacement and energy loss. Addressing these issues individually leads to partial results and recurring failures. To better understand how iron contamination affects well systems, read about iron removal water systems for well water homes and the specialized media required for oxidation and filtration.

The Certified Engineering Behind WellFusion™ Ultra 64K

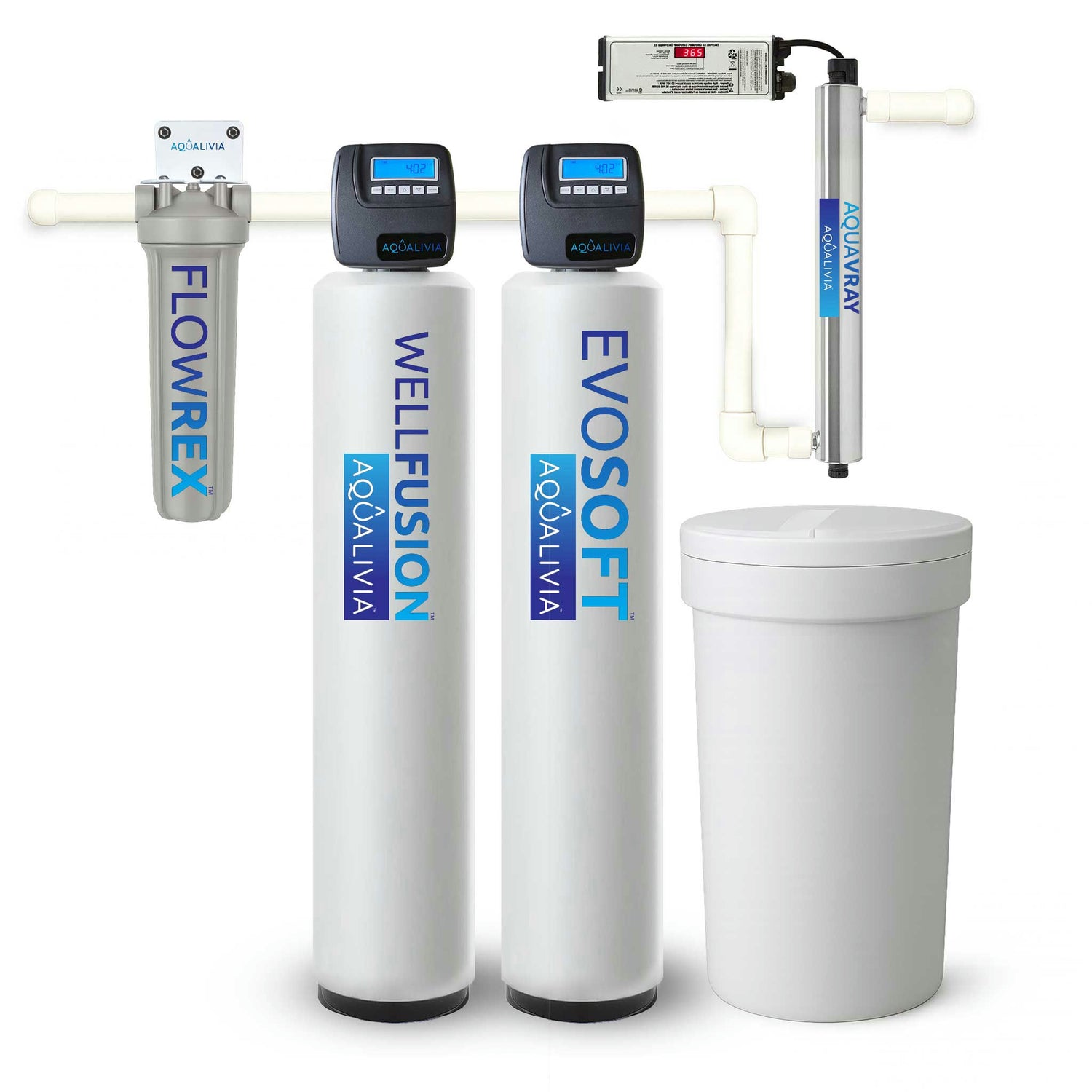

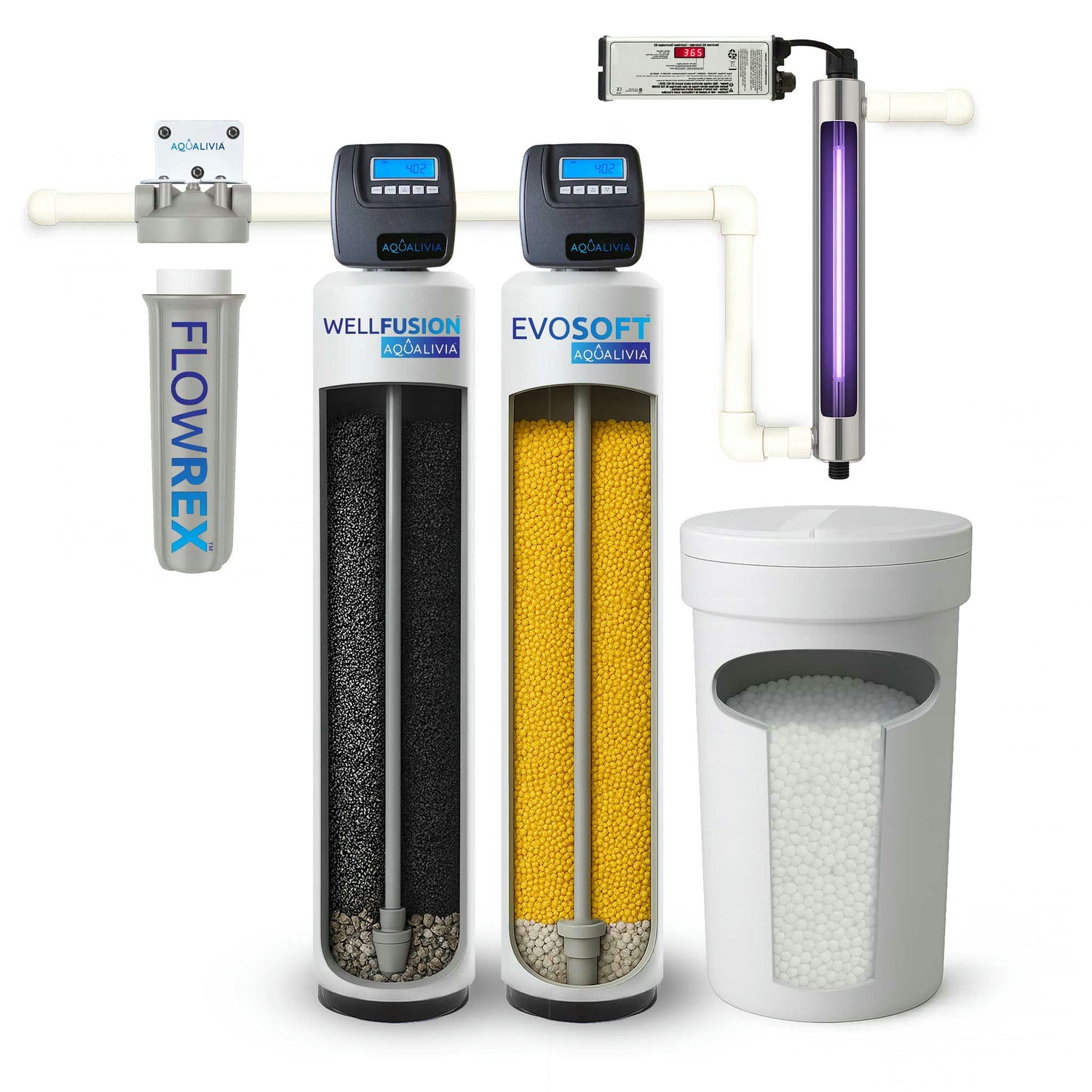

The WellFusion™ Ultra 64K integrates four treatment stages designed to work sequentially, each targeting specific contaminants before water reaches the home. Stage One begins with the AQUAREX™ sediment filter, capturing sand, silt, and particulate debris that would otherwise clog downstream media and damage valves. This pre-filtration protects the entire system and extends operational life.

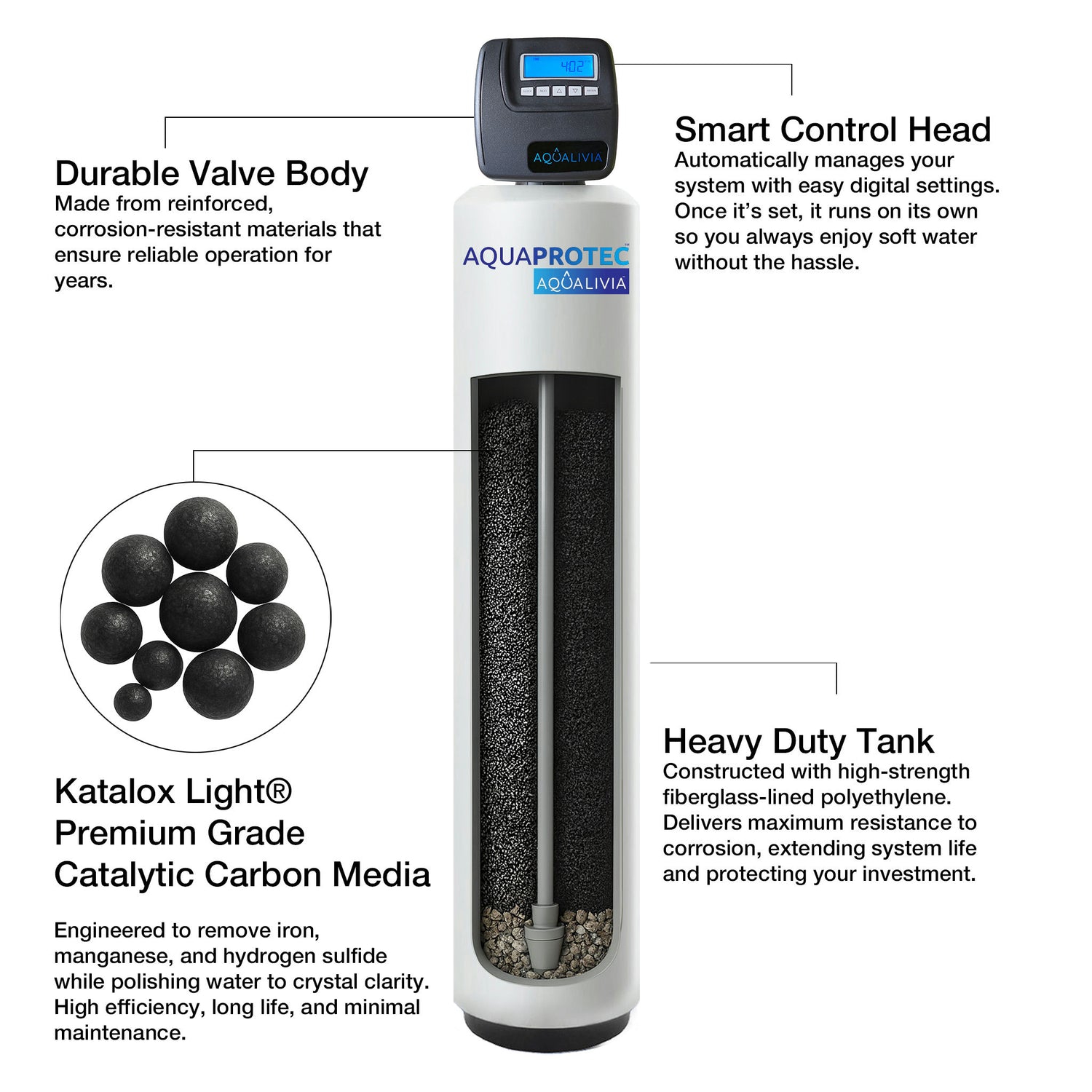

Stage Two employs Katalox Light® catalytic carbon inside the AquaProTec™ filter tank. This advanced media oxidizes dissolved iron and hydrogen sulfide on contact, converting them into filterable particles. Unlike basic carbon, Katalox Light® maintains efficiency even at high contaminant concentrations, making it ideal for challenging well water conditions. Stage Three uses Aldex C-800 8% cross-linked resin in the EVOSOFT™ softener tank. This premium resin is engineered in NSF/ANSI-certified facilities to handle the extreme hardness common in well water while resisting iron fouling that destroys standard resin beds. The 64,000-grain capacity supports households of two to four occupants across approximately 2,200 square feet.

Stage Four completes the system with the AquaVRay™ UV disinfection unit, providing a chemical-free barrier against bacteria, viruses, and other microorganisms. Every component is manufactured in the USA using materials that meet NSF/ANSI Standard 372 for lead-free compliance. The system operates on standard 110V power and includes a plug-in transformer for straightforward installation. For homeowners managing multiple well water contaminants simultaneously, explore well water filtration system bundles for homes to compare integrated treatment options.

Pure Water Living: What Changes When Chemistry Is Corrected

When iron, sulfur, and hardness are removed at the source, the transformation is immediate and comprehensive. Showers no longer release sulfur vapors. Fixtures remain clean without constant scrubbing. Laundry emerges bright and soft, free from orange staining and mineral stiffness. Water heaters operate efficiently without scale insulation reducing heat transfer. Coffee and ice taste neutral. Skin feels softer. Hair rinses clean. Appliances last years longer because they are no longer fighting corrosive chemistry with every cycle.

This is not comfort through compromise. It is the result of treating water correctly, in sequence, using media designed for well water conditions. The WellFusion™ Ultra 64K removes what damages the home and leaves behind what matters: clean, safe, usable water at every tap. Pure Water. Pure Trust.

Performance

• Ideal For: Two-story homes (with standard water pressure 50–70 PSI)

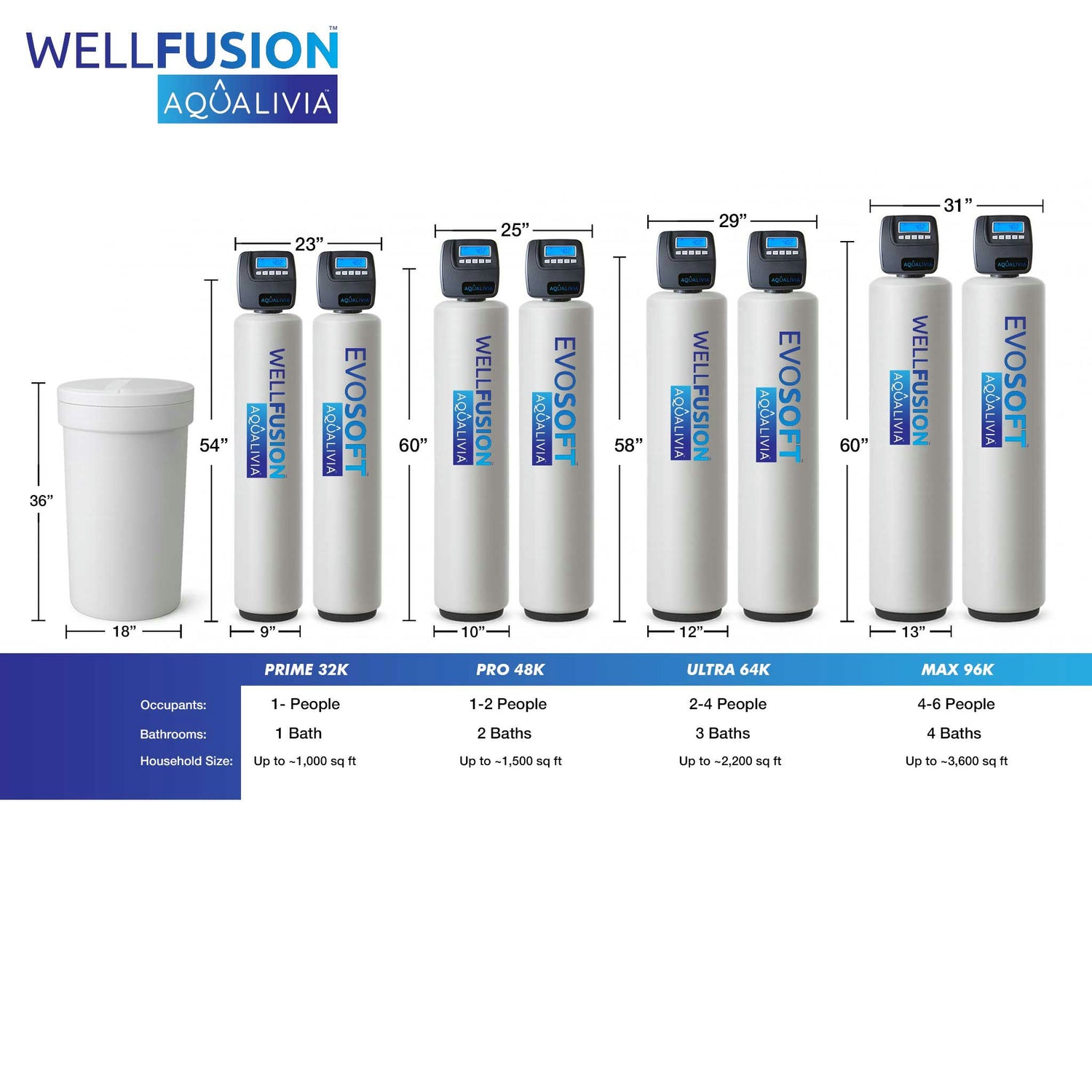

• System Capacity: 64,000 Grains
• Occupants: 2-4
• Household Size: Up to ~2,200 sq ft
• Number of Bathrooms: 2-3
• Media Volume: 2 Cu.Ft
• Media Type: Carbon - Katalox Light®, Water Softener - Aldex C-800 8% Crosslinked Resin
• Service Life: ~ 10-15 years
• Max Flow Rate: 27 gpm at 15 psi drop
• Backwash: 4 gpm

Technical Specifications

• Valve: WS-Clack WS1 Valve, Carbon Clack WS1 Valve
• Input & Output Line Size: ¾” or 1” NPT
• Tank Dimensions: 12"x52"
• Brine Tank Size: 18"X36" Gray
• Product Dimensions: 72"L × 28"W × 68"H
• Product Weight: 387 lb, 176 kg
• Material: N/A
• Power Requirement: 110V Standard (Plug-In Transformer Included)
• Bypass Valve Included: Yes
• Drain Line: ¾” or 1” NPT

Additional Components

• 1/2" Dia drain line tube 20' in length

Installation Time & Requirements

• Installation Type: Whole-House Point of Entry
• Estimated Installation Time: A professional water softener installation typically takes 3 to 6 hours, but this can vary depending on the complexity of the job and the type of system. Replacing an existing unit might take less time, sometimes as little as an hour, while a new installation with additional plumbing will take longer.

Most AQUALIVIA™ systems are built or assembled to order at our Florida facility.

• Standard orders ship in 2 to 4 business days

• Custom or special systems may require 7 to 10 business days

• Orders placed after 12:00 PM ET process the next business day

Estimated Transit Times (after shipment)

• Ground: 5 to 10 business days

• Freight systems: 5 to 10 business days

Free Shipping

Free standard shipping on orders over $99 within the continental U.S.

Freight Delivery

Large systems ship via pallet freight. An adult must be present to inspect and sign.

Inspection

Please inspect your order upon delivery and report any damage within 3 business days.

International Orders

International shipping is available. Duties and taxes are the customer’s responsibility. All international sales are final unless covered by warranty.

Warranty:

At AQUALIVIA™, we stand behind the quality of our water treatment systems. Every product is carefully built to last, and we’re proud to offer strong warranty coverage to give you peace of mind.

What’s Covered

• Mineral Tanks: 10 years (up to 13" × 54"), 5 years for larger tanks.
• Control Valves: 5 years.
• Brine Tanks: 5 years.
• Accessories & Components: 1 year.
• AQUAREX™ Whole House Filter: 5 years.
• OZONEX™ Ozone Systems: 1 year.
• AquaVRay™ UV Systems: 1 year.
• HydroClear™: 1 year(system only)
• AquaRevive™ RO Systems: 1 year(system only)

What’s Not Covered

• Regular-use consumables (filters, resins, membranes, UV lamps, cartridges).
• Damage caused by misuse, freezing, flooding, power surges, or improper installation.
• Products used with non-AQUALIVIA™ parts or outside normal water conditions.

Our Promise

We’ll repair, replace, or provide a comparable solution if your system has a covered defect. Our goal is to make sure your AQUALIVIA™ system works the way it should, so you can enjoy clean, pure water with confidence.

👉 For warranty support, please contact Info@AquaLivia.com.

Maintenance Requirement:
