AquaProTec™ Max 90K Catalytic Carbon Filter For City

The Invisible Problem

Chlorine keeps municipal water safe from bacteria, but once it reaches your home, the job is different. Every time you turn on a faucet, chlorine affects taste, smell, and comfort. You taste it in your morning coffee. You smell it in the shower. Over time, chlorine exposure irritates skin, dries hair, and releases vapors that linger in bathrooms long after the water stops running.

Many homeowners assume city water is finished once it leaves the treatment plant. But municipal disinfection leaves behind residual chemicals, disinfection byproducts like trihalomethanes (THMs), and organic compounds that standard plumbing cannot address. That is where whole-house catalytic carbon filtration becomes essential. To better understand how municipal water concerns extend beyond basic treatment, read about city water filtration systems.

The Certified Solution

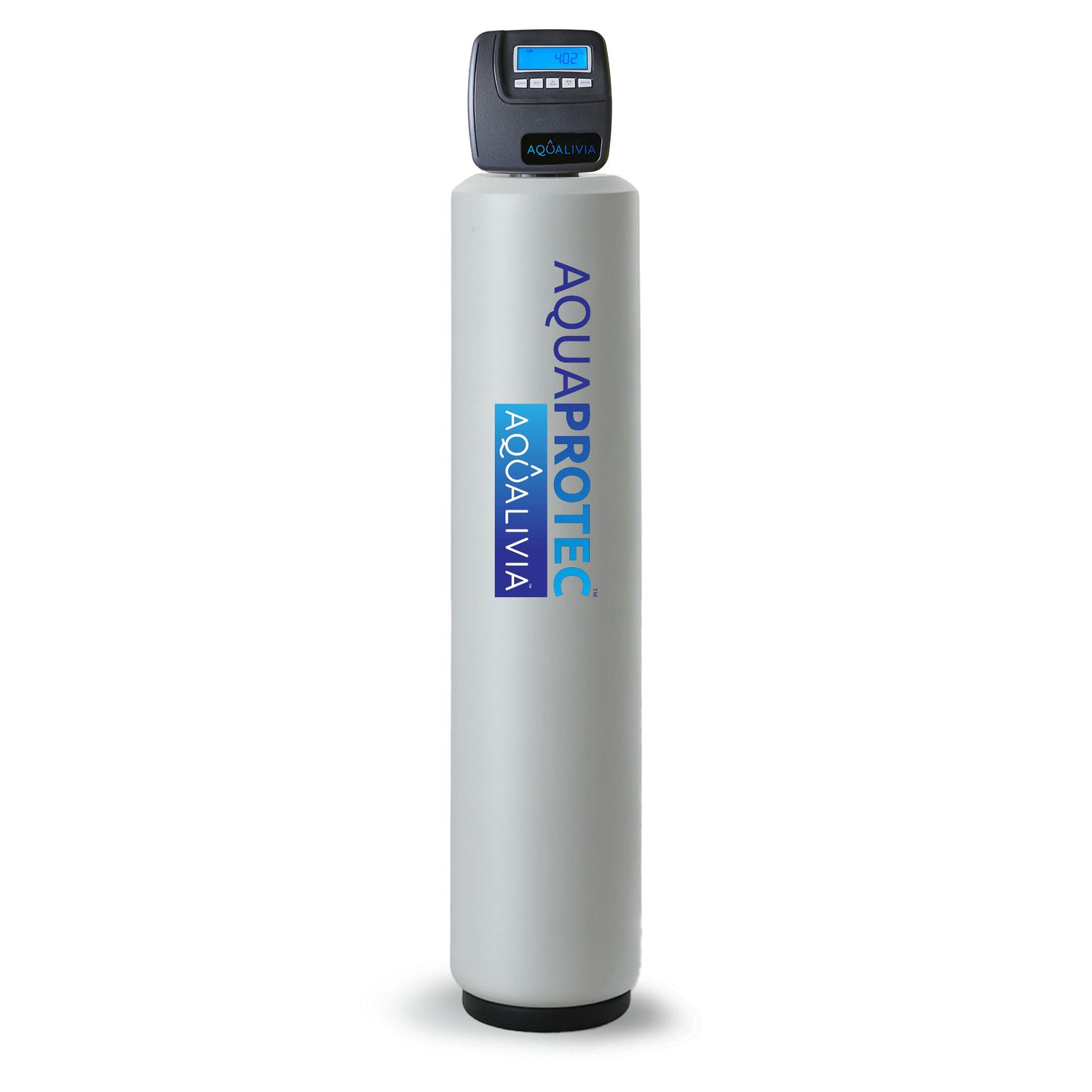

The AquaProTec™ Max 90K Catalytic Carbon Filter is engineered to treat city water the moment it enters your home. Built in the USA using high-capacity INDOCARB® E124 Catalytic Carbon Media, this system removes chlorine, chloramines, volatile organic compounds (VOCs), and organic contaminants that municipal treatment leaves behind.

Catalytic carbon operates differently than standard granular activated carbon. Its enhanced oxidation properties allow it to break down chloramines, compounds that are increasingly used by municipalities and that resist basic filtration. With a capacity rated for homes with four to six occupants, the system ensures every faucet, shower, and appliance receives filtered water without pressure loss or flow restriction.

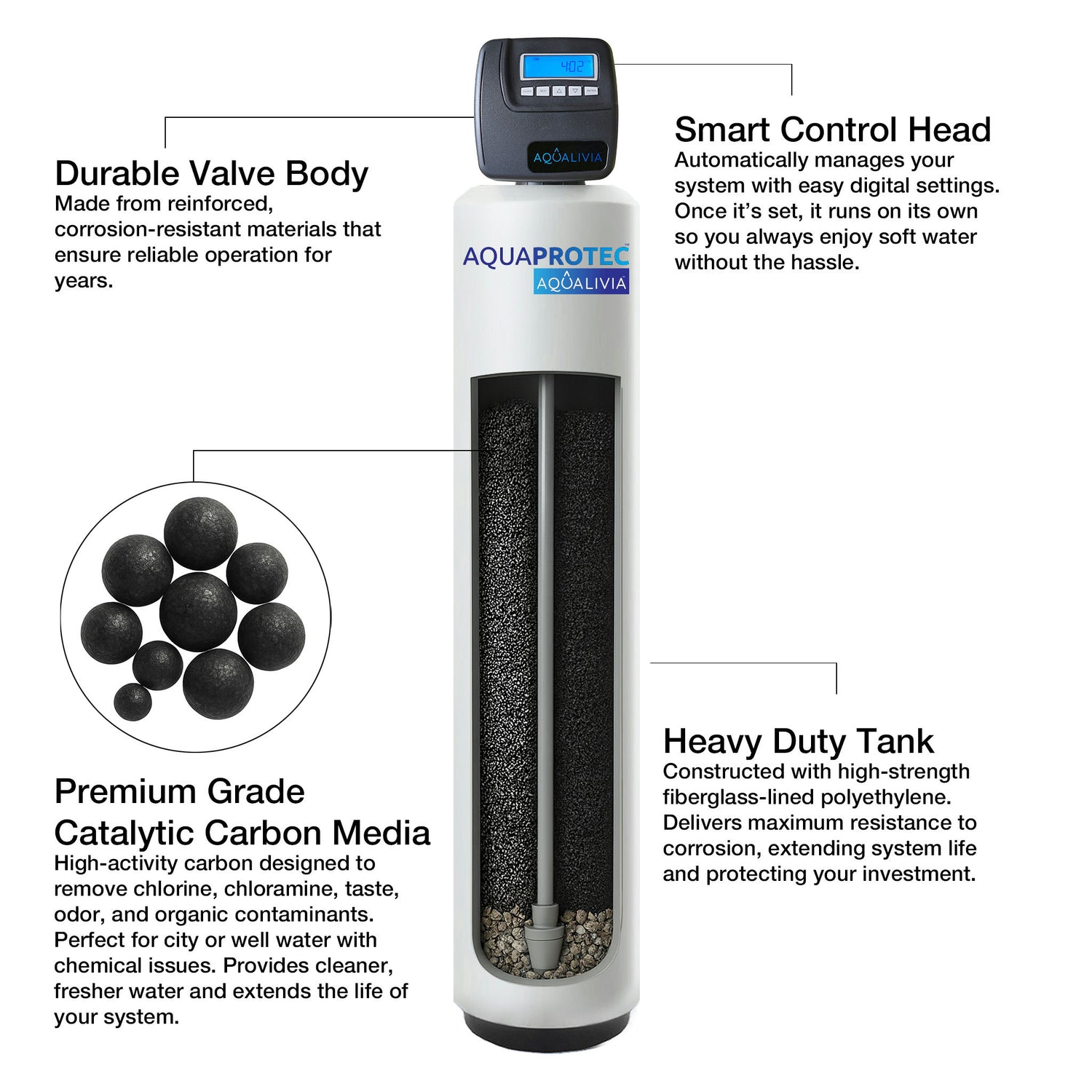

Each tank is filled with 2.5 cubic feet of premium catalytic carbon, controlled by a Clack WS1 valve engineered for reliability and precise regeneration. The system handles flow rates up to 27 gallons per minute, making it suitable even for multi-story homes with heavy simultaneous water usage. Certified to NSF/ANSI Standards 44, 61, and 372, every component is validated for safety, performance, and material quality.

Pure Water Living

Clean water changes more than just taste. It improves how your skin feels after a shower. It protects appliances from corrosive buildup. It makes coffee taste the way coffee should. With the AquaProTec™ Max 90K, water clarity and freshness are restored throughout the home, from the kitchen sink to the master bath.

This system is designed to operate quietly, efficiently, and with minimal maintenance. No frequent cartridge replacements. No salt handling. Just consistent catalytic filtration backed by a 10-year service life and factory-tested American engineering. Pure Water. Pure Trust.

Completing Your Water Strategy

While the AquaProTec™ Max 90K addresses chlorine, odor, and organic contaminants in city water, it does not reduce hardness minerals that cause scale buildup in water heaters and plumbing. For complete protection, consider pairing this system with a whole house water softener to deliver both clean and soft water throughout your home.

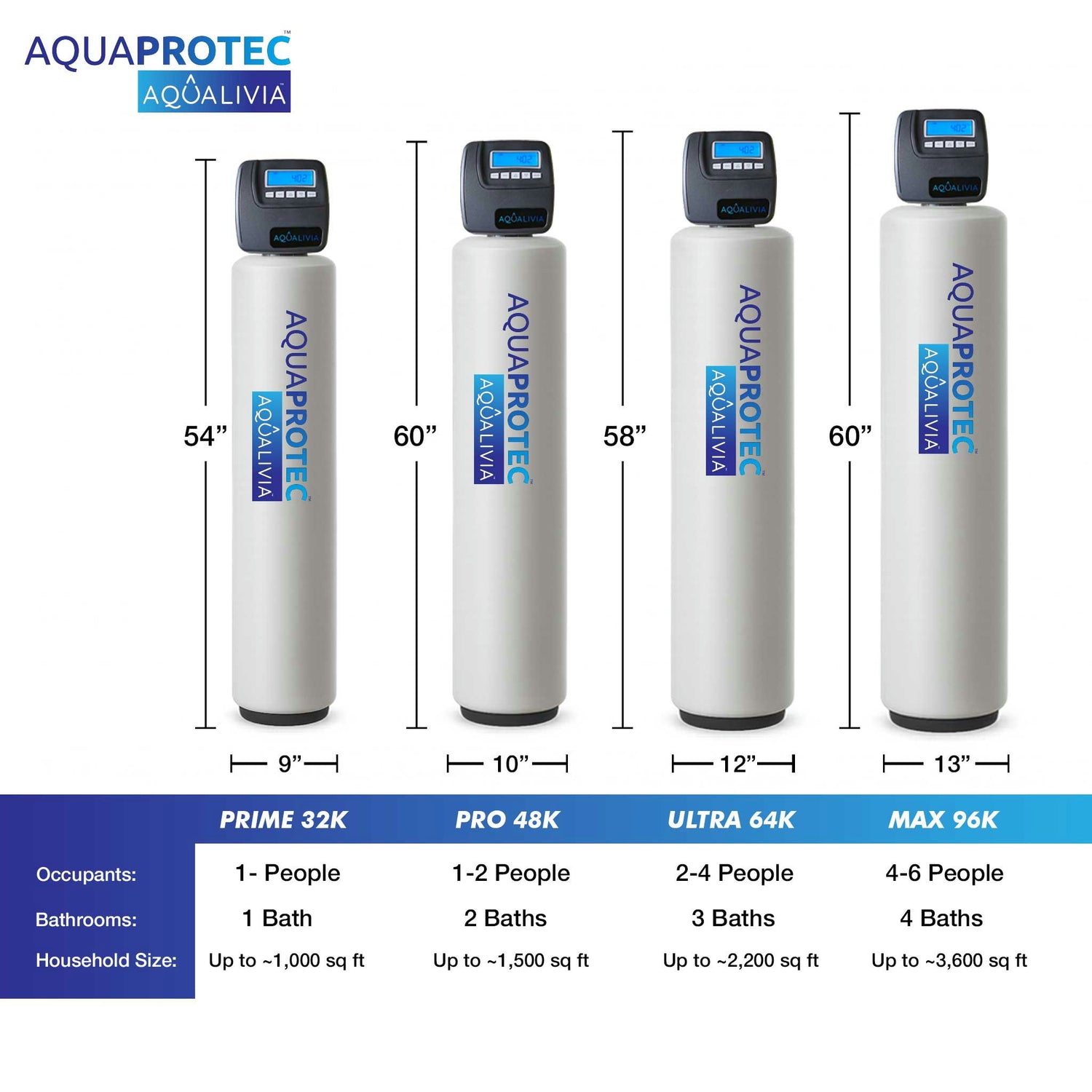

Performance

• Ideal For: Three-story homes (with standard water pressure 50–70 PSI)
• System Capacity: 90,000 Grains
• Occupants: 4-6
• Household Size: Up to ~3,600 sq ft
• Number of Bathrooms: 4-5
• Media Volume: 2.5 Cu.Ft
• Media Type: Carbon - INDOCARB® E124
• Service Life: ~ 10-15 years
• Max Flow Rate: 27 gpm at 15 psi drop
• Backwash: 5.3 gpm

Technical Specifications

• Valve: Clack WS1
• Input & Output Line Size: ¾” or 1” NPT
• Tank Dimensions: 16"x53"
• Product Dimensions: 13"L × 13"W × 61"H
• Product Weight: 124 lb, 57 kg
• Material: N/A
• Power Requirement: 110V Standard (Plug-In Transformer Included)
• Bypass Valve Included: Yes
• Operating Pressures: Requires 20–80 psi supply pressure
• Operating Temperatures: 40° - 110° F
• Drain Line: ¾” or 1” NPT

Additional Components

• 1/2" Dia drain line tube 10' in length

Installation Time & Requirements

• Installation Type: Whole-House Point of Entry
• Estimated Installation Time: A professional AquaProTec™ system installation typically takes 2 to 4 hours, but this can vary depending on the complexity of the job and the type of system. Replacing an existing unit might take less time, sometimes as little as an hour, while a new installation with additional plumbing will take longer.

Most AQUALIVIA™ systems are built or assembled to order at our Florida facility.

• Standard orders ship in 2 to 4 business days

• Custom or special systems may require 7 to 10 business days

• Orders placed after 12:00 PM ET process the next business day

Estimated Transit Times (after shipment)

• Ground: 5 to 10 business days

• Freight systems: 5 to 10 business days

Free Shipping

Free standard shipping on orders over $99 within the continental U.S.

Freight Delivery

Large systems ship via pallet freight. An adult must be present to inspect and sign.

Inspection

Please inspect your order upon delivery and report any damage within 3 business days.

International Orders

International shipping is available. Duties and taxes are the customer’s responsibility. All international sales are final unless covered by warranty.

Warranty:

At AQUALIVIA™, we stand behind the quality of our water treatment systems. Every product is carefully built to last, and we’re proud to offer strong warranty coverage to give you peace of mind.

What’s Covered

• Mineral Tanks: 10 years (up to 13" × 54"), 5 years for larger tanks.
• Control Valves: 5 years.
• Brine Tanks: 5 years.
• Accessories & Components: 1 year.
• AQUAREX™ Whole House Filter: 5 years.
• OZONEX™ Ozone Systems: 1 year.
• AquaVRay™ UV Systems: 1 year.
• HydroClear™: 1 year(system only)
• AquaRevive™ RO Systems: 1 year(system only)

What’s Not Covered

• Regular-use consumables (filters, resins, membranes, UV lamps, cartridges).
• Damage caused by misuse, freezing, flooding, power surges, or improper installation.
• Products used with non-AQUALIVIA™ parts or outside normal water conditions.

Our Promise

We’ll repair, replace, or provide a comparable solution if your system has a covered defect. Our goal is to make sure your AQUALIVIA™ system works the way it should, so you can enjoy clean, pure water with confidence.

👉 For warranty support, please contact Info@AquaLivia.com.

Maintenance Requirement:
