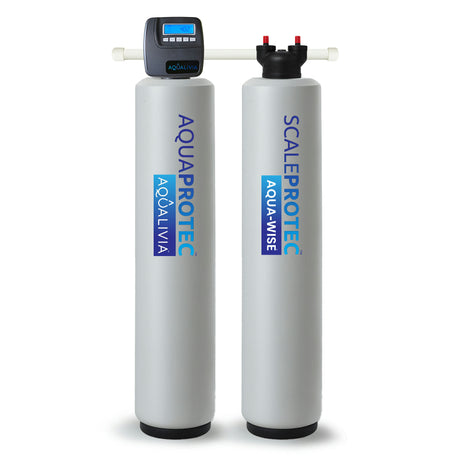

ScaleProTec™ Max 90K Complete City Water Conditioning System

When Scale and Chlorine Quietly Damage Your Home

City water may arrive treated, but it still carries calcium and magnesium minerals that form scale inside pipes, water heaters, and appliances. Over time, this buildup reduces heating efficiency, restricts flow, and accelerates equipment failure. Chlorine and chloramines, added for disinfection, linger in the water long after they leave the treatment plant. They affect taste, dry skin and hair, and contribute to long-term plumbing corrosion.

The challenge with city water is that problems compound. Scale insulates heating elements. Chlorine vapors fill showers. Sediment from aging municipal infrastructure clogs valves and scratches fixtures. Treating only one issue leaves others unchecked, and partial solutions rarely deliver lasting results.

The ScaleProTec™ Max 90K City Water Conditioning Whole House Bundle addresses these conditions at the point of entry. It combines sediment filtration, salt-free scale conditioning, chlorine reduction, and UV disinfection into a coordinated system designed to protect plumbing, appliances, and daily water use across homes up to 3,600 square feet supporting 4 to 6 occupants.

The Engineered Defense Against City Water Problems

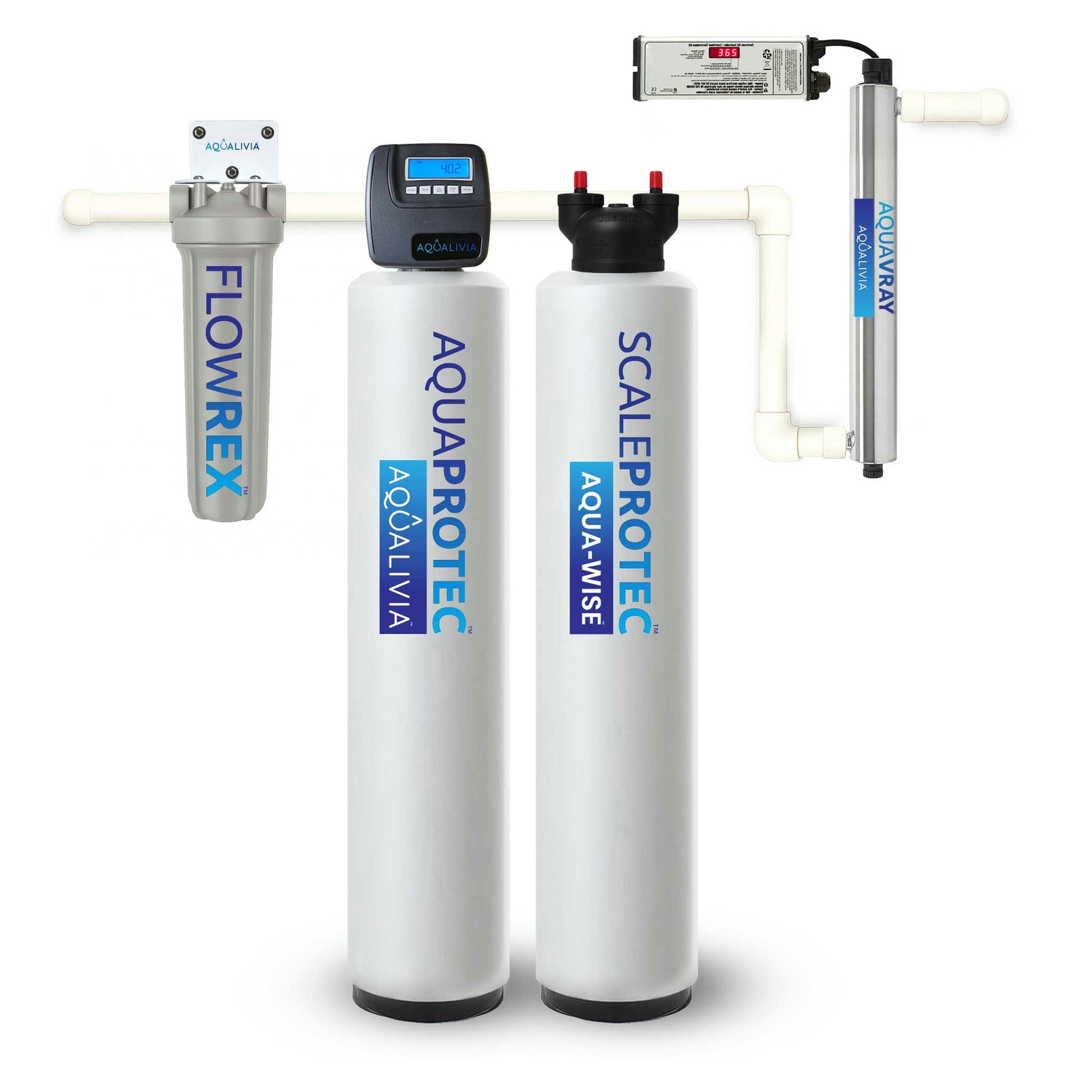

This system follows a precise treatment sequence. Water first passes through the AQUAREX™ Sediment Filter, removing sand, dirt, and particulate matter that would otherwise clog downstream equipment and scratch fixtures. Capturing sediment early protects every component that follows and extends the life of the entire system.

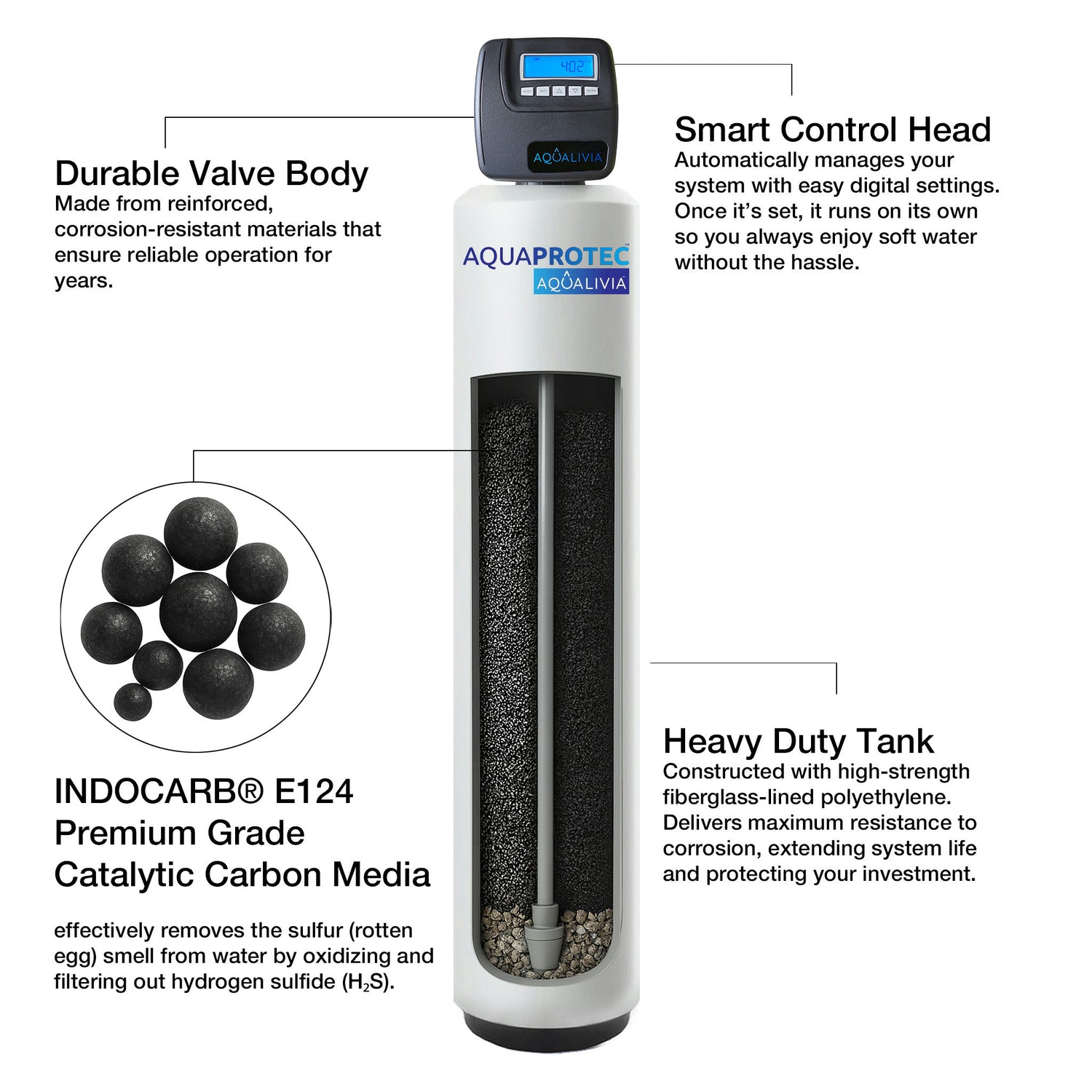

Next, water enters the AquaProTec™ Carbon Filter with 2.5 cubic feet of INDOCARB® E124 Catalytic Carbon. This NSF-certified media is engineered to reduce chlorine, chloramines, VOCs, THMs, HAAs, and organic compounds that cause taste and odor issues. Unlike standard carbon, catalytic carbon targets chloramines effectively, making it the correct choice for modern municipal disinfection methods. This stage restores neutral-tasting water and reduces chemical exposure during bathing and cooking. To better understand how chlorine impacts water quality, read about chlorine removal solutions.

From there, water flows into the ScaleProTec™ Salt-Free Conditioning Tank with FILTERSORB® SP3 media. This system does not remove hardness minerals but instead transforms their crystalline structure, preventing them from bonding to surfaces and forming scale. This approach delivers effective scale control without salt, wastewater, or regeneration cycles. It is WQA Gold Seal Certified and operates continuously at flow rates up to 27 gallons per minute at 15 psi pressure drop.

Finally, the AquaVRay™ UV System provides a chemical-free barrier against bacteria, viruses, and other microorganisms. UV light deactivates microbial DNA, preventing reproduction and ensuring water safety before it reaches any tap. This final stage completes the defense, especially important for households with immune-compromised individuals or seasonal water quality variability.

Every component is Made in the USA and backed by third-party certification. The Clack WS1 valve manages regeneration for the carbon filter. The descaler operates continuously with no electrical requirement. The UV controller includes visual indicators for lamp status and system health.

Pure Water Living

With this system installed, water heaters operate more efficiently without scale buildup. Showers no longer release chlorine vapors. Dishes, glassware, and fixtures stay cleaner longer. Laundry feels softer without soap residue or chemical odor. Skin and hair retain natural moisture instead of drying out after every wash.

These changes are not cosmetic. They represent measurable improvements in equipment longevity, energy efficiency, and daily comfort. Appliances last longer. Cleaning becomes easier. Water confidence returns.

This is what happens when water treatment is engineered correctly from the start. Pure Water. Pure Trust.

Performance

• Ideal For: Three-story homes (with standard water pressure 50–70 PSI)

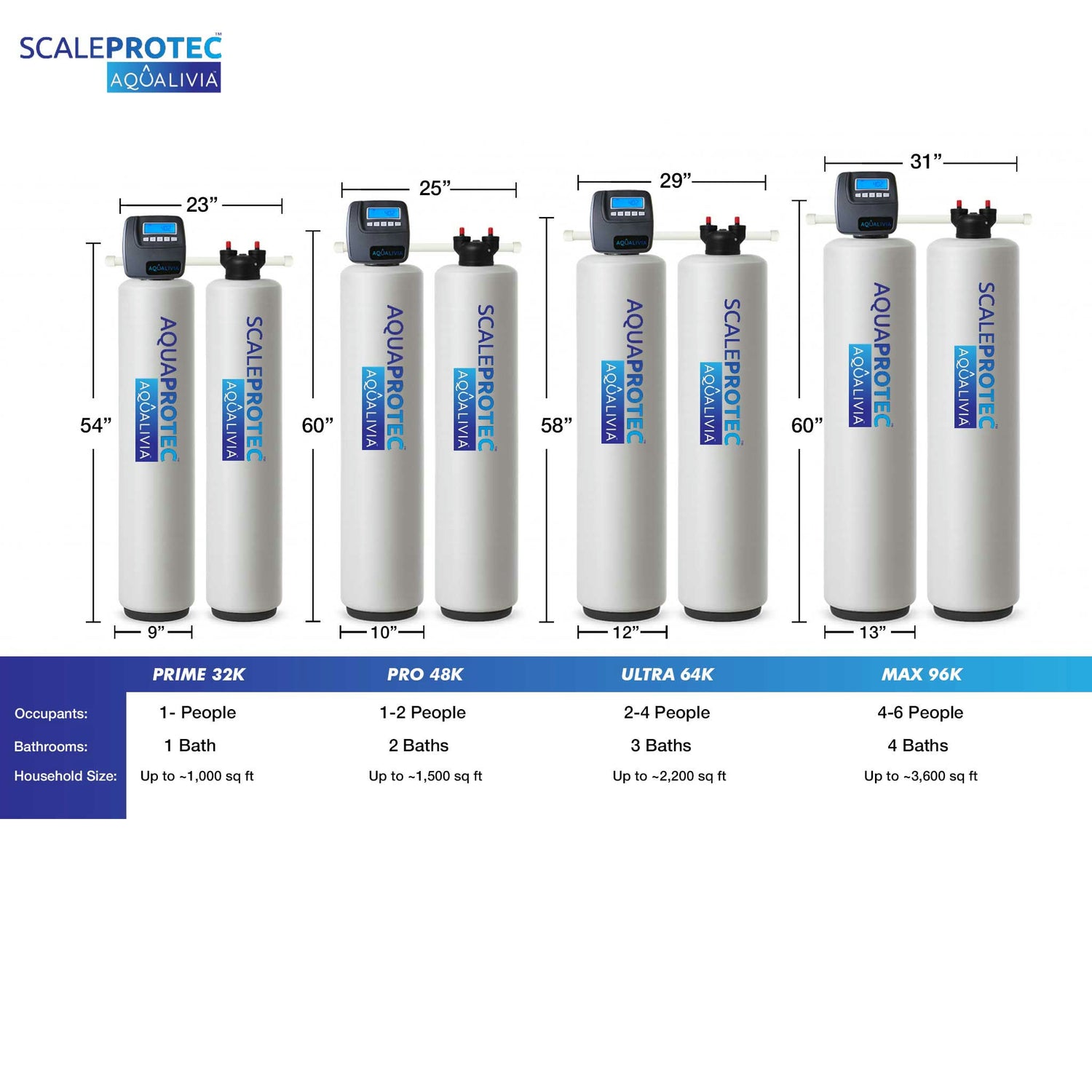

• System Capacity: 90,000 Grains
• Occupants: 4-6
• Household Size: Up to ~3,600 sq ft
• Number of Bathrooms: 4-5
• Media Volume: 2.5 Cu.Ft
• Media Type: Descaler - FILTERSORB® SP3 (City Water), Water Softener - Aldex C-800 10% Crosslinked Resin
• Service Life: ~ 10-15 years
• Max Flow Rate: 27 gpm at 15 psi drop
• Backwash: 5.3 gpm

Technical Specifications

• Valve: Descaler In-Out Head, Carbon Clack WS1 Valve
• Input & Output Line Size: ¾” or 1” NPT
• Tank Dimensions: 13"x54"
• Product Dimensions: 66"L × 26"W × 66"H
• Product Weight: 417 lb, 189 kg
• Material: N/A
• Power Requirement: 110V Standard (Plug-In Transformer Included)
• Bypass Valve Included: Yes For Carbon Tank
• Drain Line: ¾” or 1” NPT

Additional Components

• 1/2" Dia drain line tube 20' in length

Installation Time & Requirements

• Installation Type: Whole-House Point of Entry
• Estimated Installation Time: A professional water softener installation typically takes 3 to 6 hours, but this can vary depending on the complexity of the job and the type of system. Replacing an existing unit might take less time, sometimes as little as an hour, while a new installation with additional plumbing will take longer.

Most AQUALIVIA™ systems are built or assembled to order at our Florida facility.

• Standard orders ship in 2 to 4 business days

• Custom or special systems may require 7 to 10 business days

• Orders placed after 12:00 PM ET process the next business day

Estimated Transit Times (after shipment)

• Ground: 5 to 10 business days

• Freight systems: 5 to 10 business days

Free Shipping

Free standard shipping on orders over $99 within the continental U.S.

Freight Delivery

Large systems ship via pallet freight. An adult must be present to inspect and sign.

Inspection

Please inspect your order upon delivery and report any damage within 3 business days.

International Orders

International shipping is available. Duties and taxes are the customer’s responsibility. All international sales are final unless covered by warranty.

Warranty:

At AQUALIVIA™, we stand behind the quality of our water treatment systems. Every product is carefully built to last, and we’re proud to offer strong warranty coverage to give you peace of mind.

What’s Covered

• Mineral Tanks: 10 years (up to 13" × 54"), 5 years for larger tanks.
• Control Valves: 5 years.
• Brine Tanks: 5 years.
• Accessories & Components: 1 year.
• AQUAREX™ Whole House Filter: 5 years.
• OZONEX™ Ozone Systems: 1 year.
• AquaVRay™ UV Systems: 1 year.
• HydroClear™: 1 year(system only)
• AquaRevive™ RO Systems: 1 year(system only)

What’s Not Covered

• Regular-use consumables (filters, resins, membranes, UV lamps, cartridges).
• Damage caused by misuse, freezing, flooding, power surges, or improper installation.
• Products used with non-AQUALIVIA™ parts or outside normal water conditions.

Our Promise

We’ll repair, replace, or provide a comparable solution if your system has a covered defect. Our goal is to make sure your AQUALIVIA™ system works the way it should, so you can enjoy clean, pure water with confidence.

👉 For warranty support, please contact Info@AquaLivia.com.

Maintenance Requirement:
