WellFusion™ Elite 300K - Commercial Well Iron Breaker

The Invisible Problem

Commercial operations face water challenges far beyond residential scale. Iron contamination does not merely stain fixtures in a commercial environment, it halts production, damages expensive equipment, and creates costly compliance failures. When iron concentrations exceed safe operational limits, standard treatment systems collapse under the load. Processing equipment clogs. Heating systems foul. Product quality suffers. What begins as discolored water quickly escalates into equipment downtime, maintenance emergencies, and lost revenue.

In commercial settings, iron rarely appears alone. Manganese darkens water and creates black staining. Hydrogen sulfide produces rotten egg odors that drive customers away. Suspended solids clog valves and restrict flow. Arsenic, radium, and heavy metals create regulatory exposure. Without industrial-grade treatment engineered for high contamination and continuous demand, water quality failures ripple through every operation that depends on clean water. For operations managing iron removal systems at scale, understanding how catalytic media performs under commercial flow rates is critical to protecting infrastructure and maintaining uptime.

The Certified Solution

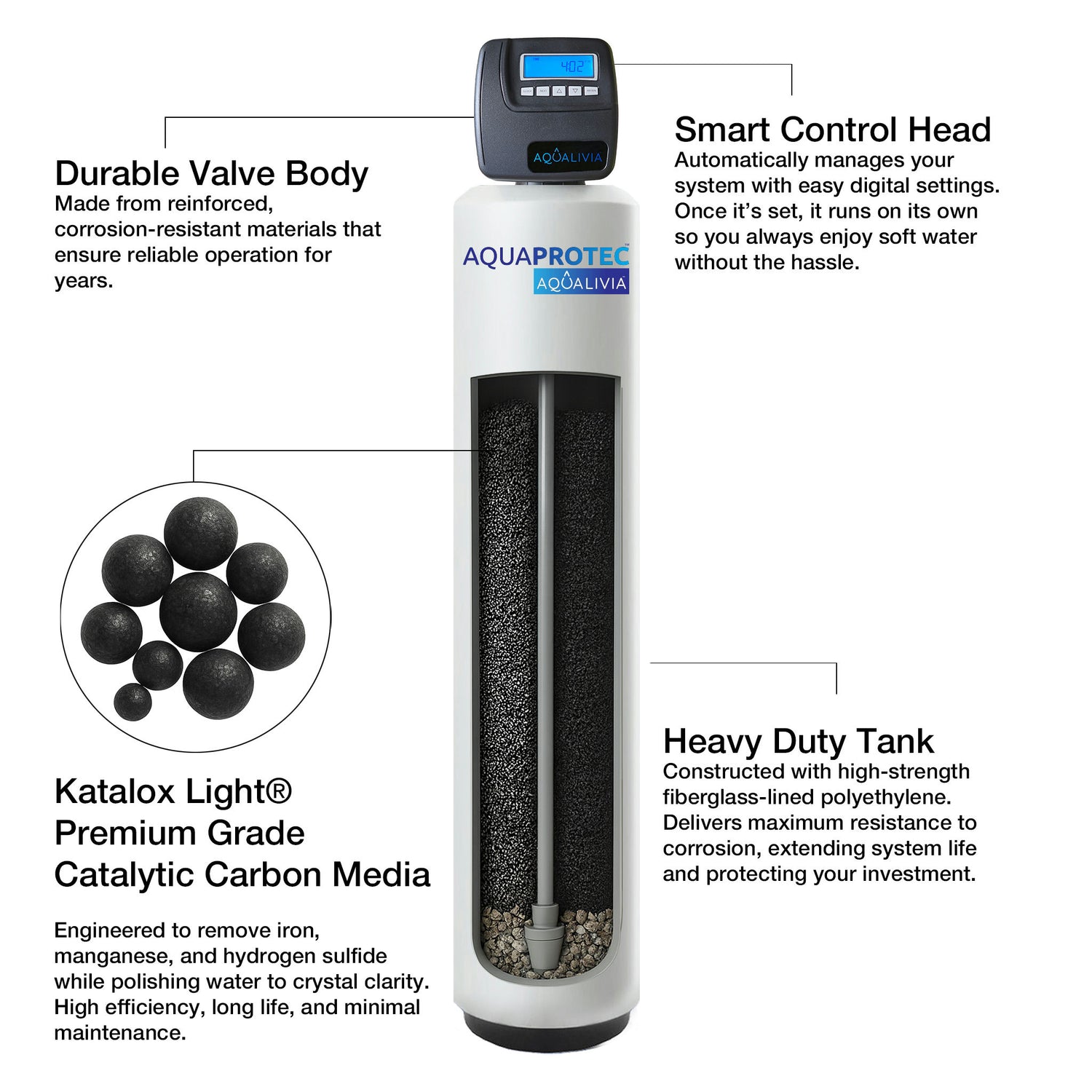

The WellFusion™ Elite 300K employs 15 cubic feet of Katalox Light, a next-generation catalytic filtration media engineered to oxidize and remove dissolved iron, manganese, hydrogen sulfide, arsenic, radium, and heavy metals at commercial scale. This manganese dioxide-coated zeolite accelerates oxidation, converting invisible ferrous iron and reduced manganese into filterable particles before they reach process equipment or customer-facing applications. With a 300,000-grain capacity housed in a 24" × 72" mineral tank and a 2-inch Clack WS2 high-flow control valve, this system supports facilities requiring up to 75 gallons per minute at sustained flow.

Built in the USA with NSF/ANSI 44 and 372 certified components, every system is inspected at our Florida facility before shipment. The catalytic media operates without chemical injection, permanganate dosing, or air pumps, relying instead on continuous oxidation during normal service flow. High-efficiency backwash cycles regenerate the media bed automatically at 80 gallons per minute, flushing captured contaminants and maintaining treatment capacity without manual intervention. The system is designed for ten to fifteen years of service life when operated within recommended parameters and maintained according to schedule. For commercial operations where iron contamination appears alongside biological risks, explore how UV water purification systems provide coordinated microbial protection when iron removal and disinfection must work together at scale.

Pure Water Living

After installation, water clarity improves across the entire facility within the first treatment cycle. Process equipment that once required weekly descaling and emergency maintenance operates cleanly. Heating systems maintain efficiency without iron sediment accumulating at heat exchanger surfaces. Product water meets quality standards consistently. Customer complaints about odor and appearance disappear. Regulatory confidence returns. The difference is measurable in every application, from food service and hospitality to manufacturing and healthcare. Equipment operates as engineered. Downtime decreases. Maintenance intervals extend naturally. When iron no longer infiltrates commercial water use, operations run smoother, costs drop, and water becomes an asset rather than a liability. Pure Water. Pure Trust.

Performance

• Ideal For: Commercial/Industrial
• System Capacity: 300,000 Grains
• Occupants: Commercial
• Household Size: Up to ~10,000 sq ft
• Number of Bathrooms: Commercial
• Media Volume: 15 Cu.Ft
• Media Type: Water Softener - Aldex C-800 10% Crosslinked Resin
• Service Life: ~ 10-15 years
• Max Flow Rate: 75 gpm
• Backwash: 303 lpm (18.2 m3/h) (80 gpm)

Technical Specifications

• Valve: Clack WS2 (2")
• Input & Output Line Size: 2” Female BSPT or NPT
• Tank Dimensions: 24"x72"
• Product Dimensions: 24"L × 24"W × 85"H
• Product Weight: 701 lb, 318 kg
• Power Requirement: 110V Standard (Plug-In Transformer Included)
• Bypass Valve Included: Yes
• Operating Pressures: Requires 20–80 psi supply pressure
• Drain Line: 1.5” Female NPT

Additional Components

• 1/2" Dia drain line tube 10' in length

Installation Time & Requirements

• Installation Type: Whole-House Point of Entry
• Estimated Installation Time: A professional water softener installation typically takes 8 to 16 hours, but this can vary depending on the complexity of the job and the type of system.
