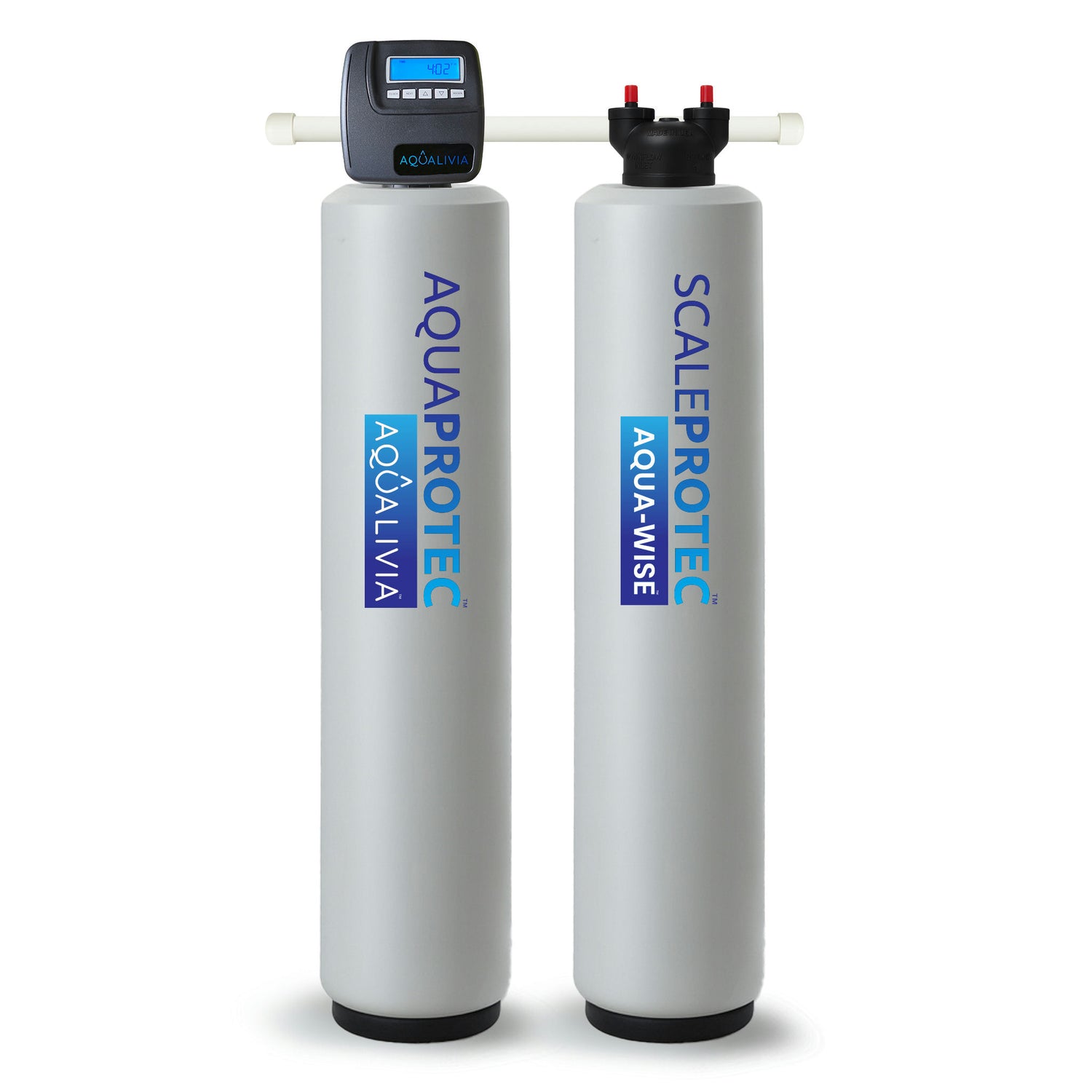

ScaleProTec™ Max 90K - Whole House Salt-Free Descaler and Carbon Filter For Well Water

The Invisible Problem

Private well water rarely presents isolated problems. When elevated hardness minerals combine with dissolved iron and hydrogen sulfide gas, the result is a compounding water quality challenge that accelerates equipment failure and creates persistent odor, staining, and scale buildup throughout the home. Hard water minerals form thick deposits inside pipes and water heaters, restricting flow and reducing heating efficiency. Iron oxidizes into rust-colored stains on sinks, tubs, and laundry. Sulfur releases a rotten egg odor during showers and cooking. Together, these contaminants promote bacterial growth, corrode plumbing faster, and overwhelm conventional filtration strategies designed to address only one issue at a time.

The ScaleProTec™ Max 90K was engineered specifically for these conditions. It combines three specialized media layers inside a dual-stage configuration designed to treat hardness, iron, and sulfur at the point of entry before water reaches any fixture or appliance. For homeowners managing multiple well water issues, understanding broader treatment approaches through complete well water systems provides insight into how coordinated solutions outperform single-purpose equipment.

The Certified Solution

FILTERSORB® SP3 restructures hardness minerals at the molecular level, preventing scale adhesion while allowing existing buildup to gradually dissolve. FILTERSORB® CT® neutralizes dissolved iron and sulfur through controlled catalytic oxidation, eliminating odor and discoloration before they reach plumbing. High-grade activated carbon removes residual taste, organic compounds, and trace metals that affect water clarity and confidence. Unlike traditional softeners that require salt delivery, brine mixing, and timed regeneration cycles, this system operates continuously without downtime, chemical additives, or wastewater discharge.

The 2.5 cubic feet of media volume ensures proper contact time even during peak demand periods across four to six occupants. Flow rates remain stable at 27 gallons per minute with minimal pressure drop, delivering consistent protection to multiple bathrooms, laundry areas, and outdoor connections simultaneously. Every component meets NSF/ANSI certification standards for materials safety and performance, and all manufacturing occurs in the United States using commercial-grade materials engineered to exceed residential service expectations. For those evaluating alternatives to traditional ion exchange softening, exploring salt-free water conditioners clarifies when this approach delivers the most value.

Pure Water Living

When scale no longer accumulates inside water heaters, heating elements operate at full efficiency and energy costs drop. When iron stops oxidizing inside plumbing, fixtures stay cleaner and laundry comes out brighter without the stiff texture or lingering metallic odor. When sulfur is neutralized at the source, showers feel fresh and coffee tastes neutral. These improvements are not cosmetic. They represent the difference between water that causes ongoing damage and water that supports daily life without compromise or constant maintenance.

The system installs at the point of entry, treating all water before it reaches any fixture, appliance, or tap. This whole-house approach ensures consistent results across kitchens, bathrooms, laundry rooms, and outdoor connections. Maintenance requirements are minimal: an annual inspection of flow direction and bypass seals. No salt. No backwash. No brine discharge. Pure Water. Pure Trust.

Performance

• Ideal For: Three-story homes (with standard water pressure 50–70 PSI)
• System Capacity: 90,000 Grains
• Occupants: 4-6
• Household Size: Up to ~3,600 sq ft
• Number of Bathrooms: 4-5
• Media Volume: 2.5 Cu.Ft
• Media Type: Descaler Mix - FILTERSORB CT® & FILTERSORB® SP3, Carbon - Katalox Light® Advanced Filtration Media for Iron, Manganese and Hydrogen Sulfide Removal
• Service Life: ~ 10-15 years
• Max Flow Rate: 27 gpm at 15 psi drop
• Backwash: 5.3 gpm

Technical Specifications

• Valve: Carbon Clack WS1 Valve
• Input & Output Line Size: ¾” or 1” NPT
• Tank Dimensions: 13"x54"
• Product Dimensions: 13"L × 13"W × 61"H (Each Tank)
• Product Weight: 175 lb, 80 kg
• Material: N/A
• Power Requirement: 110V Standard (Plug-In Transformer Included)
• Bypass Valve Included: Yes
• Operating Pressures: Requires 20–80 psi supply pressure
• Operating Temperatures: 40° - 110° F
• Drain Line: ¾” or 1” NPT

Additional Components

• 1/2" Dia drain line tube 10' in length

Installation Time & Requirements

• Installation Type: Whole-House Point of Entry
• Estimated Installation Time: A professional ScaleProTec™ system installation typically takes 2 to 4 hours, but this can vary depending on the complexity of the job and the type of system. Replacing an existing unit might take less time, sometimes as little as an hour, while a new installation with additional plumbing will take longer.

Most AQUALIVIA™ systems are built or assembled to order at our Florida facility.

• Standard orders ship in 2 to 4 business days

• Custom or special systems may require 7 to 10 business days

• Orders placed after 12:00 PM ET process the next business day

Estimated Transit Times (after shipment)

• Ground: 5 to 10 business days

• Freight systems: 5 to 10 business days

Free Shipping

Free standard shipping on orders over $99 within the continental U.S.

Freight Delivery

Large systems ship via pallet freight. An adult must be present to inspect and sign.

Inspection

Please inspect your order upon delivery and report any damage within 3 business days.

International Orders

International shipping is available. Duties and taxes are the customer’s responsibility. All international sales are final unless covered by warranty.

Warranty:

At AQUALIVIA™, we stand behind the quality of our water treatment systems. Every product is carefully built to last, and we’re proud to offer strong warranty coverage to give you peace of mind.

What’s Covered

• Mineral Tanks: 10 years (up to 13" × 54"), 5 years for larger tanks.
• Control Valves: 5 years.
• Brine Tanks: 5 years.
• Accessories & Components: 1 year.
• AQUAREX™ Whole House Filter: 5 years.
• OZONEX™ Ozone Systems: 1 year.
• AquaVRay™ UV Systems: 1 year.
• HydroClear™: 1 year(system only)
• AquaRevive™ RO Systems: 1 year(system only)

What’s Not Covered

• Regular-use consumables (filters, resins, membranes, UV lamps, cartridges).
• Damage caused by misuse, freezing, flooding, power surges, or improper installation.
• Products used with non-AQUALIVIA™ parts or outside normal water conditions.

Our Promise

We’ll repair, replace, or provide a comparable solution if your system has a covered defect. Our goal is to make sure your AQUALIVIA™ system works the way it should, so you can enjoy clean, pure water with confidence.

👉 For warranty support, please contact Info@AquaLivia.com.

Maintenance Requirement:
