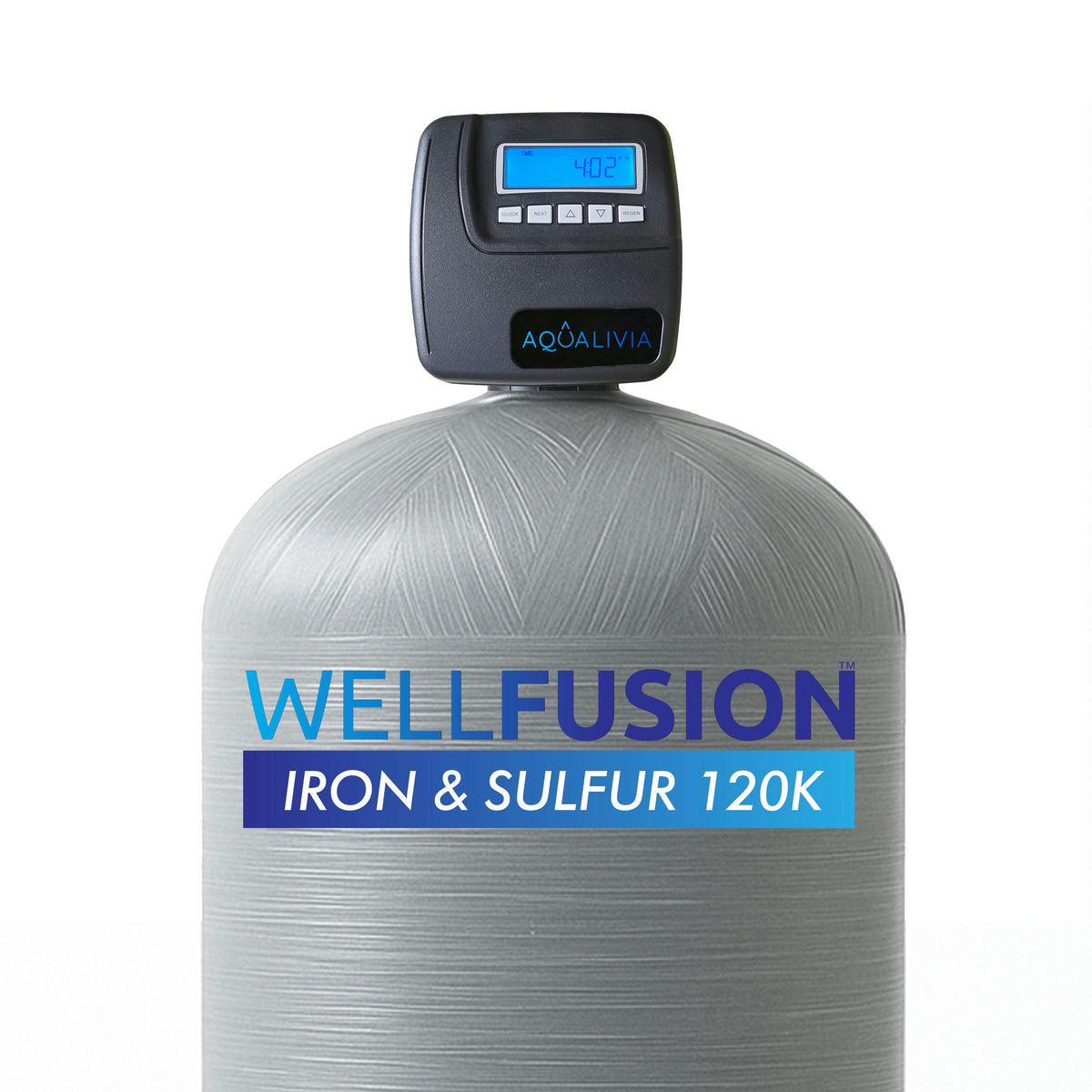

WellFusion™ Elite 120K - Commercial Well Iron Removal and Sulfur Removal

The Invisible Threat to Commercial Well Water Systems

Private well systems serving commercial properties face contamination loads far beyond residential levels. Iron concentrations above 5 ppm leave rust trails across restrooms, kitchens, and laundry facilities. Hydrogen sulfide releases rotten egg odors that clients notice immediately. Manganese creates black staining that accumulates on fixtures and equipment. Together, these contaminants corrode plumbing, promote iron bacteria colonies, and create maintenance costs that escalate with every service call.

The WellFusion™ Elite 120K is engineered for properties where contamination exceeds standard filtration capacity and downtime equals lost revenue. This system oxidizes dissolved contaminants, captures oxidized particles, and neutralizes odor-causing compounds before water reaches a single fixture. To better understand how these issues affect operations, review our guidance on iron and rust stain removal solutions and sulfur odor removal for well water.

Katalox Light and Aldex C-800 Resin: The Certified Engineering

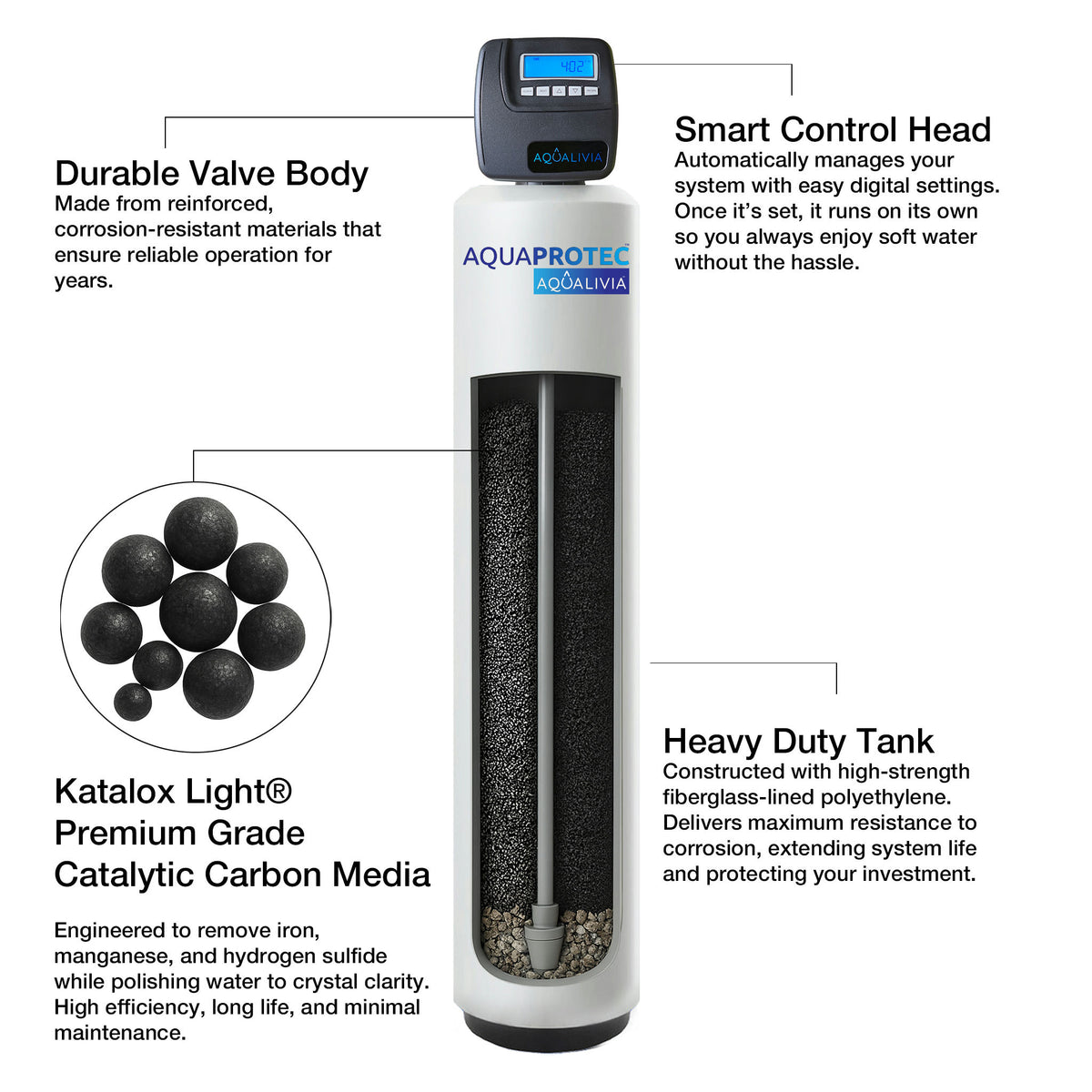

At the core of this system lies Katalox Light catalytic media, a high-performance filtration composite that removes dissolved and oxidized iron, manganese, hydrogen sulfide, and arsenic without permanganate regeneration. Unlike coated media that degrades under commercial demand, Katalox Light maintains structural integrity and oxidation capacity across extended service intervals. This media bed is housed in a NSF/ANSI certified 16" × 53" mineral tank with 4 cubic feet of filtration capacity, supporting flow rates up to 25 gallons per minute at controlled pressure drop.

The system integrates Aldex C-800 10% crosslinked ion exchange resin, precision-manufactured for heavy-duty softening and iron removal in demanding water conditions. This resin delivers 120,000-grain capacity, providing extended regeneration cycles that reduce salt consumption, wastewater discharge, and maintenance frequency. The entire assembly operates through a Clack WS1 1.5" control valve, engineered in the USA with ISO 9001 certified components to automate backwash and regeneration cycles based on actual water usage and time intervals. This valve ensures consistent performance without manual oversight, reducing operational burden while extending media and resin service life.

The complete system is built in Florida using components that meet NSF/ANSI Standard 372 for lead-free compliance and NSF/ANSI 44 certification for water softening performance. This is not residential-grade equipment adapted for commercial use. This is Proudly Made in the USA filtration designed specifically for high-concentration well water challenges where standard systems fail within months and replacements cost thousands.

Pure Water for Professional Operations

After installation, operational improvements are immediate and measurable. Restrooms no longer release sulfur vapors. Laundry facilities process white linens without orange staining. Drinking water served to clients tastes neutral and clean. The WellFusion™ Elite 120K removes contaminants at the molecular level, protecting water heaters, commercial dishwashers, and process equipment from ongoing corrosion and fouling. Odor complaints stop. Maintenance intervals extend. Water pressure remains consistent across all fixtures during peak demand periods.

This system supports light commercial operations including small hotels, restaurants, offices, and multi-family properties drawing from private well supplies. It handles seasonal demand fluctuations, supports up to approximately 5,200 square feet of conditioned space, and operates reliably within standard municipal or well pressure ranges of 20 to 80 PSI. Service life exceeds 10 years when maintained according to manufacturer protocols. Backwash cycles execute automatically. Media and resin replacement follows straightforward procedures. The system operates quietly in mechanical rooms, delivering results clients notice every day without awareness of the engineering protecting their experience. Pure Water. Pure Trust.

Performance

• Ideal For: Commercial/Industrial
• System Capacity: 120,000 Grains
• Occupants: Light Commercial
• Household Size: Up to ~5,200 sq ft
• Number of Bathrooms: Light Commercial
• Media Volume: 4 Cu.Ft
• Media Type: Carbon - INDOCARB® E124, Carbon - Katalox Light® Advanced Filtration Media for Iron, Manganese and Hydrogen Sulfide Removal
• Service Life: ~ 10-15 years
• Max Flow Rate: 25 gpm
• Backwash: 6.5 gpm

Technical Specifications

• Valve: Clack WS1 (1.25")
• Input & Output Line Size: 1.5” NPT

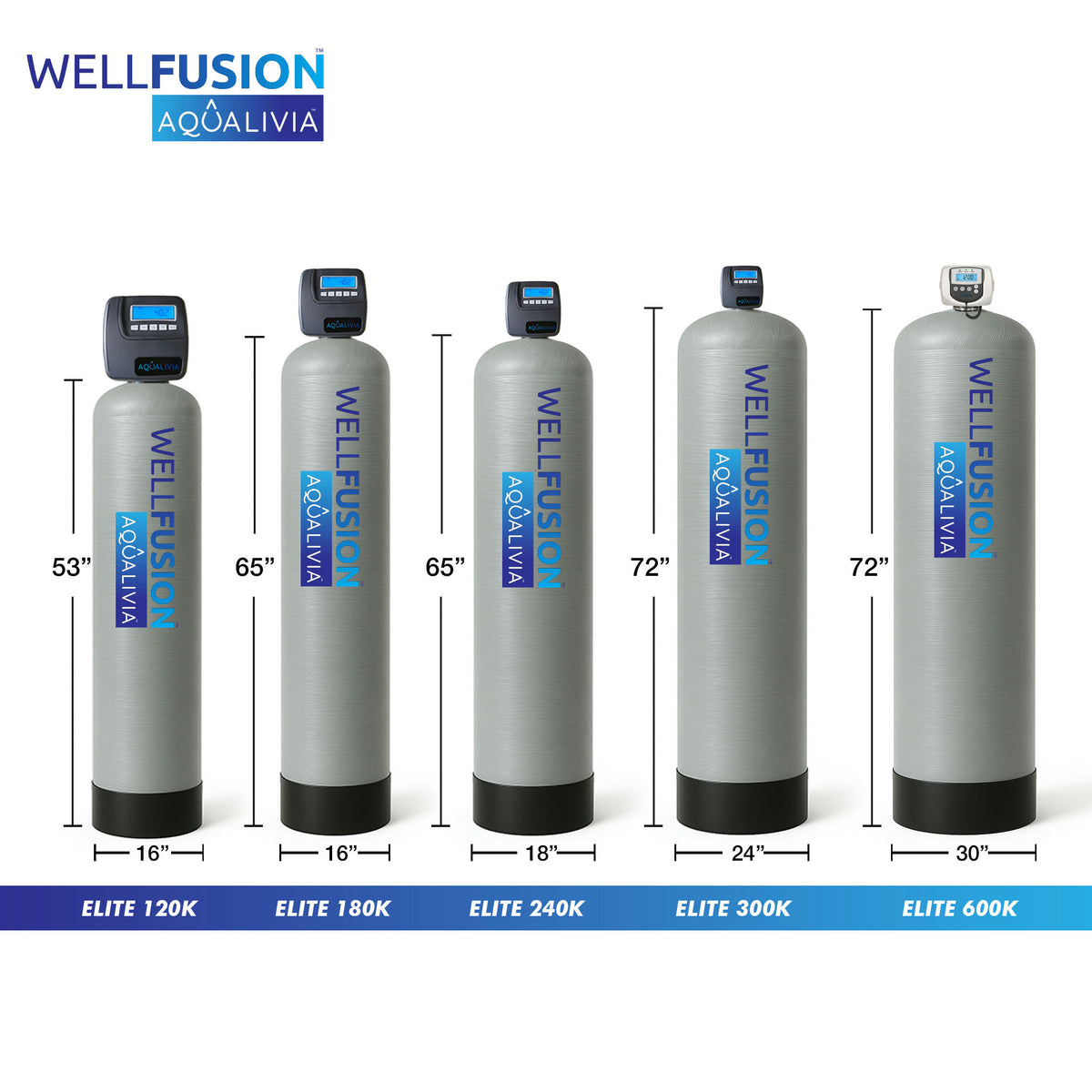

• Tank Dimensions: 16"x53"
• Product Dimensions: 14"L × 14"W × 72"H
• Product Weight: 306 lb, 139 kg
• Power Requirement: 110V Standard (Plug-In Transformer Included)
• Bypass Valve Included: Yes
• Operating Pressures: Requires 20–80 psi supply pressure
• Drain Line: ¾” or 1” NPT

Additional Components

• 1/2" Dia drain line tube 10' in length

Installation Time & Requirements

• Installation Type: Whole-House Point of Entry
• Estimated Installation Time: A professional water softener installation typically takes 2 to 4 hours, but this can vary depending on the complexity of the job and the type of system. Replacing an existing unit might take less time, sometimes as little as an hour, while a new installation with additional plumbing will take longer.
