WellFusion™ Elite 180K - Commercial Well Sulfur Removal

When Sulfur Odor Disrupts Operations and Customer Confidence

Hydrogen sulfide does not just smell unpleasant. In commercial settings, sulfur contamination undermines customer experience, disrupts food preparation, affects laundry quality, and accelerates equipment corrosion. Every faucet releases rotten egg odor when water is drawn. Showers in hospitality environments become complaints. Coffee shops serve beverages with off-flavors. Manufacturing processes relying on clean water face quality control issues.

Sulfur contamination signals broader well water challenges. Hydrogen sulfide forms through bacterial activity in groundwater and often coincides with iron bacteria, biofilm development, and accelerated corrosion inside plumbing and mechanical systems. Standard residential filtration cannot manage the chemistry or volume demands of commercial operations. Activated carbon alone lacks the catalytic surface structure required to neutralize sulfur compounds at scale. When odor persists across multiple fixtures, damage continues unseen, corroding valves, heat exchangers, and appliances while degrading water quality throughout the facility.

The WellFusion™ Elite 180K treats hydrogen sulfide at the point of entry using 6 cubic feet of Aldex C-800 10% crosslinked ion exchange resin housed in a 16" × 65" mineral tank. This system delivers 180,000 grains of sulfur reduction capacity designed for commercial operations requiring up to 40 gallons per minute flow rate. The Clack WS2 (2") control valve manages programmable backwash cycles at 8 to 9 gallons per minute, regenerating the media bed and preventing sulfur bacteria accumulation. For facilities managing multiple iron and sulfur removal systems for well water homes, this system provides the engineering and capacity required to eliminate odor before water reaches any outlet.

The Engineering Behind High-Capacity Sulfur Neutralization

Crosslinked ion exchange resin operates through advanced catalytic oxidation, converting hydrogen sulfide into stable, odorless compounds without creating secondary treatment demands. The WellFusion™ Elite 180K uses premium Aldex C-800 10% crosslinked resin sourced from American manufacturers certified to NSF/ANSI 44 and ISO 9001:2000 standards. This media delivers consistent performance across fluctuating sulfur concentrations common in commercial well systems.

Every component supports reliable, continuous operation. The 180,000-grain capacity provides sulfur reduction across seasonal water quality variations and high-volume usage cycles. The Clack WS2 valve delivers precise, programmable backwash cycles that restore media efficiency and prevent channeling or fouling. Installation accepts 2" NPT inlet and outlet connections, includes a bypass valve for maintenance isolation, and operates on standard 110V power through an included plug-in transformer. Backwash flow demand remains at 8 to 9 gallons per minute, maintaining media longevity without excessive water usage. Operating temperature range spans 40° to 110° F, and operating pressure tolerance extends from 20 to 125 psi.

This system is designed for 10 to 15 years of reliable operation when maintained according to manufacturer guidelines. Regular injector and screen cleaning every 6 to 12 months prevents performance loss and protects downstream equipment. Proper installation includes adequate drain line access and confirmation that supply pressure remains within the 20 to 80 psi operating range. When sulfur concentration exceeds catalytic capacity, pretreatment or ozone injection may be required. For comprehensive protection against well water bacteria in commercial environments, whole house UV water purification systems for homes provide an additional layer of defense as part of a coordinated treatment strategy.

Operations Without Sulfur Odor Across Every Outlet

Odor-free water restores operational confidence and protects brand reputation. Hospitality guests shower without complaint. Coffee shops serve beverages with true flavor. Laundries return linens without lingering chemical or rotten egg smell. Food preparation maintains quality standards. Equipment operates more efficiently without sulfur-induced corrosion, and plumbing systems remain cleaner over the long term. Fixtures maintain their appearance longer without exposure to reactive compounds that accelerate wear and discoloration.

The WellFusion™ Elite 180K is built for commercial operations that demand consistent performance across all water outlets during peak demand. Whether running multiple showers simultaneously in a hotel or supporting continuous food service operations, this system maintains steady flow and complete odor elimination. That is what commercial-grade well water requires. That is what American manufacturing delivers. Pure Water. Pure Trust.

Performance

• Ideal For: Commercial/Industrial
• System Capacity: 180,000 Grains
• Occupants: Commercial
• Household Size: Up to ~6,500 sq ft
• Number of Bathrooms: Commercial
• Media Volume: 6 Cu.Ft

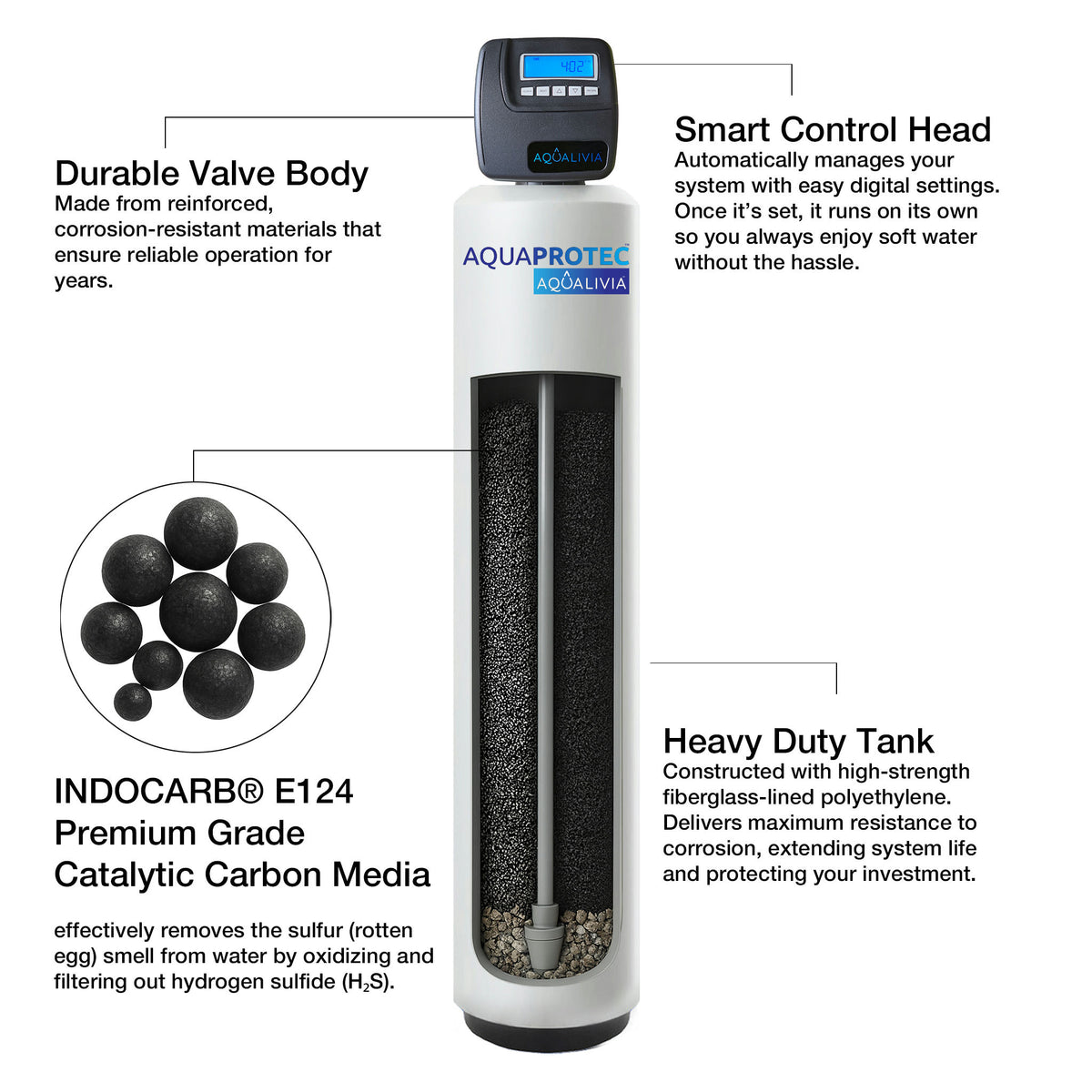

• Media Type: Carbon - INDOCARB® E124
• Service Life: ~ 10-15 years
• Max Flow Rate: 40 gpm
• Backwash: 8-9 gpm

Technical Specifications

• Valve: Clack WS2 (2")
• Input & Output Line Size: 2” NPT
• Tank Dimensions: 16"x65"
• Product Dimensions: 16"L × 16"W × 72"H
• Product Weight: 416 lb, 189 kg
• Power Requirement: 110V Standard (Plug-In Transformer Included)
• Bypass Valve Included: Yes
• Operating Pressures: Requires 20–80 psi supply pressure
• Drain Line: 1.5” Female NPT

Additional Components

• 1/2" Dia drain line tube 10' in length

Installation Time & Requirements

• Installation Type: Whole-House Point of Entry
• Estimated Installation Time: A professional water softener installation typically takes 8 to 16 hours, but this can vary depending on the complexity of the job and the type of system.
