WellFusion™ Elite 300K - Commercial Well Iron Removal and Sulfur Removal

The Invisible Enemy in Commercial Well Water

Commercial well water rarely meets basic quality standards. Iron concentrations above 5 ppm leave rust-colored trails across restrooms, kitchens, and service areas. Hydrogen sulfide releases the unmistakable rotten egg smell that fills facilities during peak usage. Manganese stains plumbing black and promotes biofilm growth. Together, these contaminants accelerate corrosion in boilers, cooling systems, and process equipment. Treating symptoms with spot filtration does not stop the damage. Understanding the scope of contamination is the only way forward. Learn more about iron and rust stain removal solutions and sulfur odor removal for well water.

The WellFusion™ Elite 300K is engineered for operations where iron, sulfur, and manganese exceed the capacity of residential-grade filtration systems. This is not a partial solution. It oxidizes dissolved contaminants, filters oxidized particles, and neutralizes odor-causing compounds before water reaches a single fixture, process line, or equipment connection.

The Certified Engineering Behind 300,000-Grain Capacity

At the core of this system lies 15 cubic feet of Aldex C-800 10% crosslinked ion exchange resin, a professional-grade softening and filtration media housed in a NSF/ANSI certified 24" × 72" mineral tank. This high-capacity tank supports flow rates up to 75 gallons per minute while maintaining optimal contact time for iron, sulfur, and manganese removal. The crosslinked resin structure resists fouling and maintains ionic exchange efficiency even under aggressive well water conditions that destroy standard media within months.

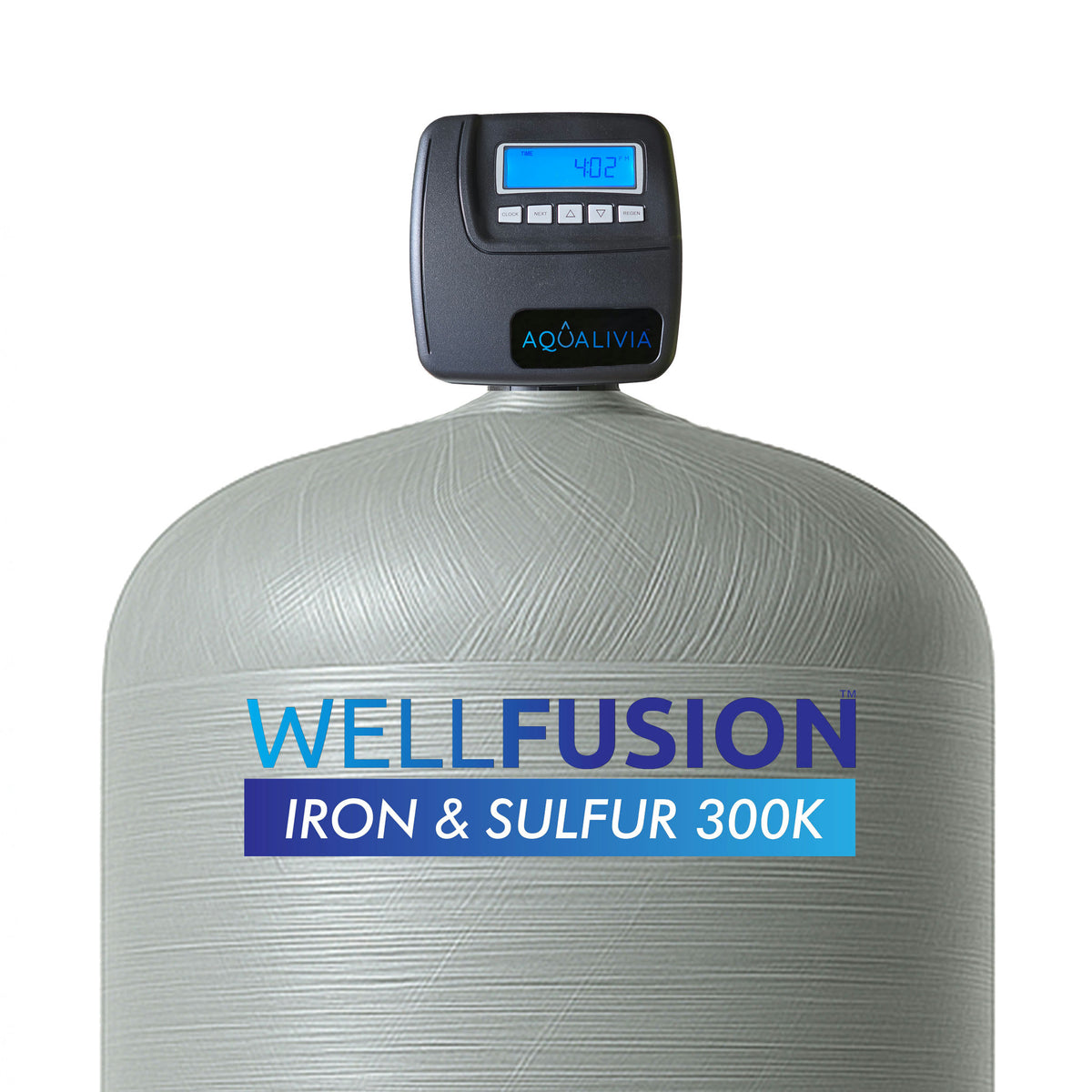

The system operates through a Clack WS2 (2") control valve, a commercial-grade controller precision-engineered in the USA to automate backwash cycles based on water usage, time intervals, and regeneration demand. This valve ensures consistent regeneration without manual intervention, reducing maintenance demands while extending media life. Backwash flow rates reach 80 gallons per minute, ensuring complete bed expansion and media cleaning during regeneration cycles.

The entire assembly is built in Florida using ISO 9001:2000 certified components that meet NSF/ANSI Standard 372 for lead-free compliance and NSF/ANSI 44 certification for water softening performance. Operating pressure ranges from 20 to 125 psi, with optimal performance between 50 and 70 psi. Operating temperatures span 40°F to 110°F, supporting year-round operation in unheated utility spaces. This is not generic filtration. This is Proudly Made in the USA equipment designed for high-concentration well water challenges in commercial environments where downtime costs money and reliability protects operations.

Pure Water Living: The Operational Transformation

After installation, the change is immediate. Restrooms no longer release sulfur vapors during peak hours. Laundry emerges white, not orange. Process water tastes neutral and clean. The WellFusion™ Elite 300K removes contaminants at the molecular level, protecting water heaters, boilers, cooling towers, and process equipment from ongoing corrosion and staining. Customers no longer notice odor. Plumbing operates efficiently. Water pressure remains consistent across all zones and fixtures.

This system supports commercial facilities up to approximately 10,000 square feet with moderate to high water demand. It is designed for multi-story buildings, hotels, restaurants, manufacturing facilities, and agricultural operations with standard well pressure (20 to 80 psi) and handles seasonal demand fluctuations without performance degradation. Service life exceeds 10 to 15 years when maintained according to manufacturer guidelines. Backwash cycles are fully automated. Media replacement is straightforward. The system operates quietly in the background, delivering results you see, smell, and taste every day. Pure Water. Pure Trust.

Performance

• Ideal For: Commercial/Industrial
• System Capacity: 300,000 Grains
• Occupants: Commercial
• Household Size: Up to ~10,000 sq ft
• Number of Bathrooms: Commercial
• Media Volume: 15 Cu.Ft
• Media Type: Carbon - INDOCARB® E124, Carbon - Katalox Light® Advanced Filtration Media for Iron, Manganese and Hydrogen Sulfide Removal
• Service Life: ~ 10-15 years
• Max Flow Rate: 75 gpm
• Backwash: 303 lpm (18.2 m3/h) (80 gpm)

Technical Specifications

• Valve: Clack WS2 (2")
• Input & Output Line Size: 2” Female BSPT or NPT

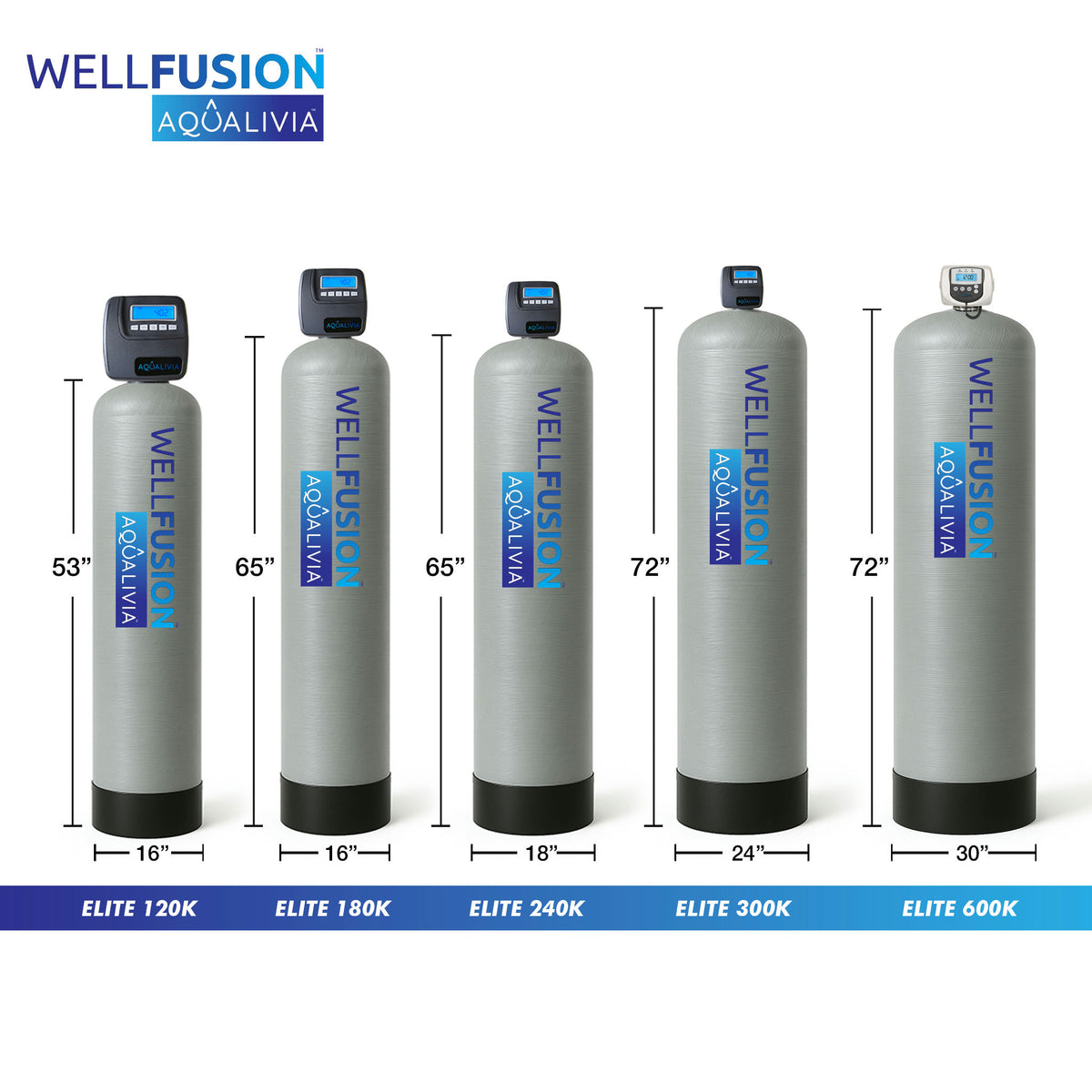

• Tank Dimensions: 24"x72"
• Product Dimensions: 24"L × 24"W × 85"H
• Product Weight: 701 lb, 318 kg
• Power Requirement: 110V Standard (Plug-In Transformer Included)
• Bypass Valve Included: Yes
• Operating Pressures: Requires 20–80 psi supply pressure
• Drain Line: 1.5” Female NPT

Additional Components

• 1/2" Dia drain line tube 10' in length

Installation Time & Requirements

• Installation Type: Whole-House Point of Entry
• Estimated Installation Time: A professional water softener installation typically takes 8 to 16 hours, but this can vary depending on the complexity of the job and the type of system.
