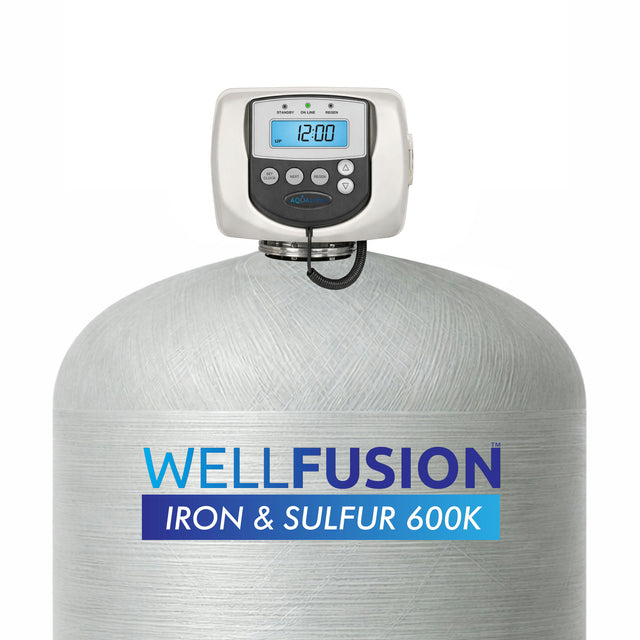

WellFusion™ Elite 600K - Commercial Well Iron Removal and Sulfur Removal

The Hidden Cost of Untreated Well Water

In commercial and large residential environments, well water contamination does not simply cause inconvenience. It creates operational failure. Iron concentrations exceeding 3 ppm deposit rust-colored stains across sinks, showers, and laundry facilities. Hydrogen sulfide releases the unmistakable rotten egg odor that fills guest rooms, kitchens, and common areas during peak usage. Manganese discolors fixtures black and accelerates corrosion throughout plumbing infrastructure. Combined, these contaminants promote iron bacteria growth, clog distribution lines, and damage water-dependent equipment with accelerating costs over time.

The WellFusion™ Elite 600K is engineered for properties where iron, sulfur, and manganese loads exceed the capacity of residential-grade systems. This is not partial mitigation. It oxidizes dissolved contaminants, filters oxidized particles, and neutralizes odor-causing compounds before water reaches a single fixture across the entire facility. To better understand how these contaminants affect operations, explore iron and rust stain removal solutions and sulfur odor removal for well water.

Aldex C-800 Cross-Linked Resin and 3-Inch Control Engineering

At the core of this system lies Aldex C-800 10% cross-linked ion exchange resin, a premium softening and filtration media engineered for high-capacity iron removal and extended service life under aggressive water conditions. Unlike standard resins that degrade rapidly when exposed to oxidized iron and sulfur compounds, Aldex C-800 maintains structural integrity and consistent exchange capacity across thousands of regeneration cycles. This media bed is housed in a NSF/ANSI certified 30" × 72" mineral tank with 20 cubic feet of treatment capacity, supporting sustained flow rates up to 250 gallons per minute at controlled pressure drop.

The system operates through a Clack WS3 industrial control valve with 3-inch Female NPT inlet and outlet connections, precision-engineered in the USA to automate backwash and regeneration cycles based on actual water usage and elapsed time. This valve ensures consistent performance without manual intervention, reducing maintenance demands while protecting media life under continuous demand. The entire assembly is built in Florida using ISO 9001 certified components that meet NSF/ANSI Standard 372 for lead-free compliance and NSF/ANSI 44 for performance validation. This is not generic equipment adapted for commercial use. This is Proudly Made in the USA infrastructure designed for high-concentration, high-volume well water applications where inferior systems fail within months.

Operational Confidence Across Every Fixture

After installation, the transformation is facility-wide. Showers no longer release sulfur vapors into occupied spaces. Laundry emerges white, not orange. Drinking water from break rooms and kitchens tastes neutral and clean. The WellFusion™ Elite 600K removes contaminants at the molecular level, protecting water heaters, boilers, and distribution infrastructure from ongoing corrosion and staining. Guests no longer notice odor. Staff confidence increases. Equipment operates efficiently. Water pressure remains consistent across all zones and floors.

This system supports commercial facilities, estates with 10,000+ square feet, multi-tenant properties, and agricultural operations with demanding water quality requirements. It is designed for environments with standard well pressure (20 to 80 psi) and handles seasonal demand fluctuations without performance degradation. Service life exceeds 10 years when maintained according to manufacturer guidelines. Backwash cycles are fully automated. Media replacement follows predictable intervals. The system operates continuously in the background, delivering results visible across every water outlet, every day. Pure Water. Pure Trust.

Performance

• Ideal For: Commercial/Industrial
• System Capacity: 600,000 Grains
• Occupants: Commercial
• Household Size: 10,000+ sq ft
• Number of Bathrooms: Commercial
• Media Volume: 20 Cu.Ft
• Media Type: Carbon - INDOCARB® E124, Carbon - Katalox Light® Advanced Filtration Media for Iron, Manganese and Hydrogen Sulfide Removal
• Service Life: ~ 10-15 years
• Max Flow Rate: 250 gpm (946 lpm) (56.8 m3 /h)
• Backwash: ~30 gpm

Technical Specifications

• Valve: Clack WS3 (3")
• Input & Output Line Size: 3" Female NPT or BSPT
• Tank Dimensions: 30"x72"
• Product Dimensions: 30"L × 30"W × 80"H
• Product Weight: 1,351 lb, 613 kg
• Power Requirement: 110V Standard (Plug-In Transformer Included)
• Bypass Valve Included: Yes
• Operating Pressures: Requires 20–80 psi supply pressure
• Drain Line: 3” Female NPT/BSPT “No Groove Lock”

Additional Components

• 1/2" Dia drain line tube 10' in length

Installation Time & Requirements

• Installation Type: Whole-House Point of Entry
• Estimated Installation Time: A professional water softener installation typically takes 8 to 16 hours, but this can vary depending on the complexity of the job and the type of system.
