WellFusion™ Max 90K Sulfur Complete Well System

The Silent Threat in Untreated Well Water

Sulfur odors in well water signal more than an unpleasant smell. When hydrogen sulfide gas rises from groundwater, it transforms showers into sulfur vapor chambers, laundry into odor-saturated fabric, and drinking water into something no one wants to touch. Even at concentrations measured in parts per billion, the rotten egg smell becomes unbearable. The issue intensifies when hot water releases sulfur compounds into the air, filling bathrooms and kitchens with a persistent chemical presence that guests notice immediately.

Beyond discomfort, sulfur accelerates corrosion inside water heaters, damages plumbing fixtures, and interacts with other well water contaminants to create compounding water quality failures. Standard filtration cannot address hydrogen sulfide effectively because the gas requires oxidation and specialized media contact before it can be captured. Without proper treatment at the point of entry, sulfur odors worsen over time as sulfur bacteria colonize plumbing systems and create biofilm that releases additional odor compounds.

To better understand how sulfur odor interacts with other well water issues, read about complete iron and sulfur removal systems that address multiple contaminants simultaneously.

The Engineering Behind Odor-Free Water

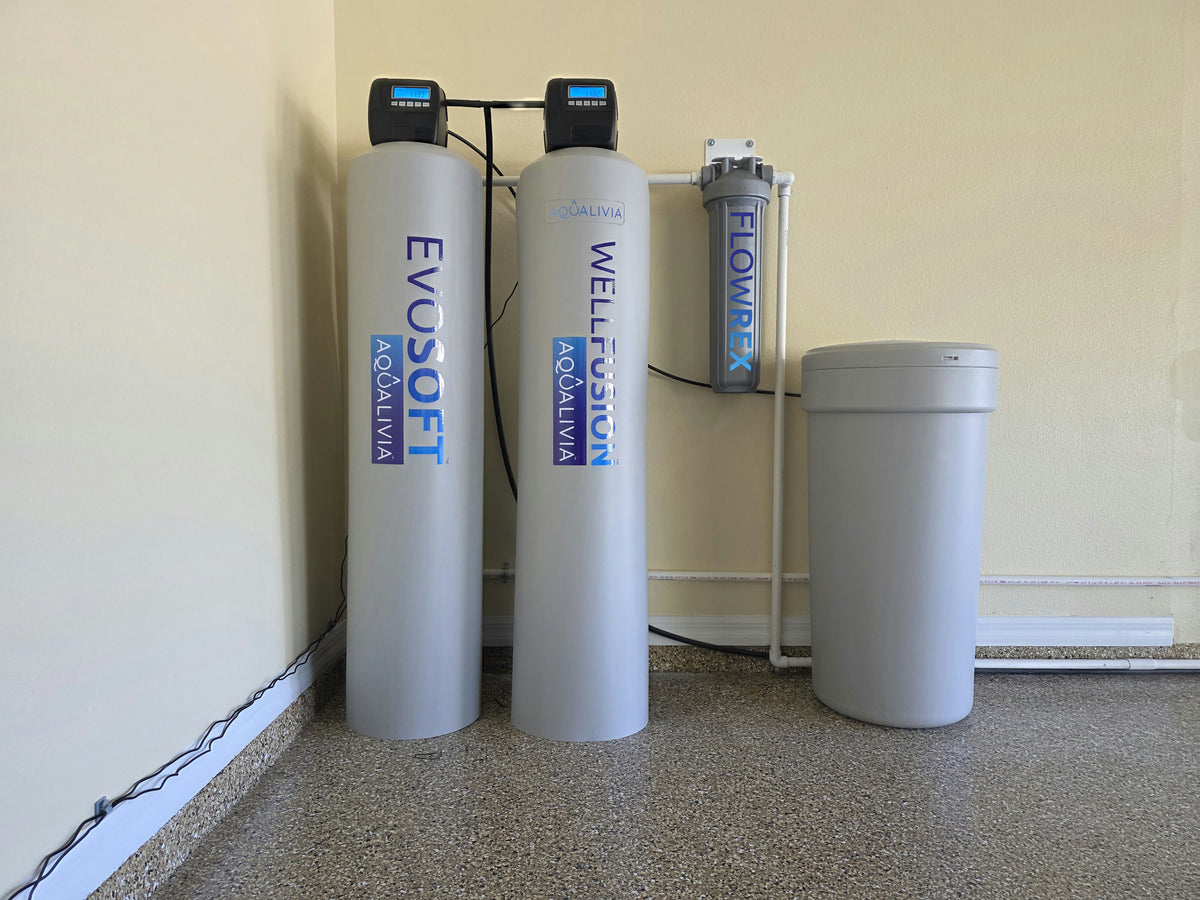

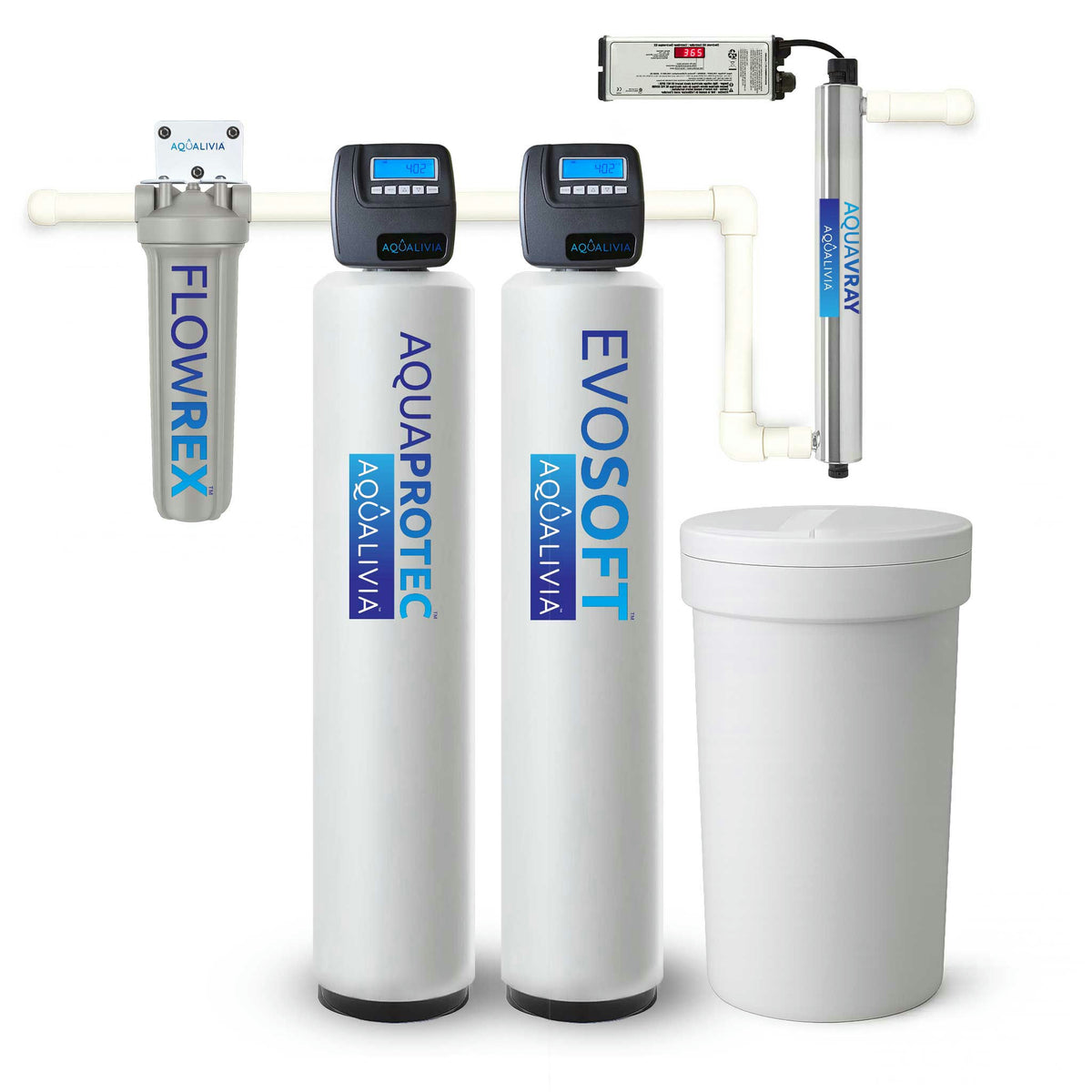

The WellFusion™ Max 90K Sulfur Bundle combines four precision-engineered stages to neutralize hydrogen sulfide, capture sediment, soften water, and disinfect before water enters the home. Stage one deploys the AQUAREX™ Sediment Filter to remove suspended particles that would otherwise foul downstream treatment media. Clean water then flows into the AquaProTec™ Catalytic Carbon Filter, loaded with INDOCARB® E124 media specifically formulated to oxidize hydrogen sulfide and capture sulfur compounds through extended contact time.

Stage three introduces the EVOSOFT™ Water Softener, utilizing cross-linked Aldex C-800 resin engineered to remove calcium and magnesium while maintaining structural integrity under sulfur exposure. This prevents scale formation that would otherwise trap residual sulfur compounds inside plumbing and appliances. The final stage deploys the AquaVRay™ UV System, delivering 40 mJ/cm² of ultraviolet energy to deactivate bacteria and microorganisms that could regenerate sulfur odors downstream.

Every component in this bundle is manufactured in the United States under ISO 9001:2000 certified quality control, with NSF/ANSI 44 certified materials and engineering designed for long-term reliability in high-sulfur well water conditions. The Clack WS1 control valves manage regeneration cycles with precision timing to maintain media effectiveness without water waste.

Pure Water Living Without Compromise

When sulfur odors disappear, daily water use transforms completely. Showers become refreshing without vapor clouds. Laundry emerges clean and neutral-scented. Cooking water no longer affects food flavor. Guests notice nothing unusual because there is nothing unusual to notice. The WellFusion™ Max 90K protects water heaters from sulfur-accelerated corrosion, extends appliance lifespan by preventing scale accumulation, and eliminates the metallic taste that sulfur compounds create when combined with dissolved iron.

Designed for homes with severe sulfur contamination, this system handles up to 27 gallons per minute at minimal pressure drop, supporting multi-story homes and simultaneous fixture use without performance degradation. The 90,000-grain softening capacity ensures consistent water quality across 3,600 square feet of living space, while the 2.5 cubic feet of catalytic carbon provides extended contact time necessary for complete sulfur oxidation. Pure Water. Pure Trust.

Performance

• Ideal For: Three-story homes (with standard water pressure 50–70 PSI)
• System Capacity: 90,000 Grains
• Occupants: 4-6
• Household Size: Up to ~3,600 sq ft
• Number of Bathrooms: 4-5
• Media Volume: 2.5 Cu.Ft
• Media Type: Carbon - INDOCARB® E124, Water Softener - Aldex C-800 8% Crosslinked Resin
• Service Life: ~ 10-15 years
• Max Flow Rate: 27 gpm at 15 psi drop
• Backwash: 5.3 gpm

Technical Specifications

• Valve: WS-Clack WS1 Valve, Carbon Clack WS1 Valve
• Input & Output Line Size: ¾” or 1” NPT
• Tank Dimensions: 13"x54"
• Brine Tank Size: 18"X36" Gray
• Product Dimensions: 48"L × 24"W × 65"H
• Product Weight: 117 lb, 53 kg
• Material: N/A
• Power Requirement: 110V Standard (Plug-In Transformer Included)
• Bypass Valve Included: Yes
• Drain Line: ¾” or 1” NPT

Additional Components

• 1/2" Dia drain line tube 20' in length

Installation Time & Requirements

• Installation Type: Whole-House Point of Entry
• Estimated Installation Time: A professional water softener installation typically takes 3 to 6 hours, but this can vary depending on the complexity of the job and the type of system. Replacing an existing unit might take less time, sometimes as little as an hour, while a new installation with additional plumbing will take longer.
