WellFusion™ Max 90K - Well Iron Removal and Sulfur Removal

The Invisible Enemy in Your Well Water

Private well systems deliver water that carries contaminants no municipal treatment would allow to reach a single fixture. Iron concentrations above 3 ppm leave rust-colored trails across sinks, toilets, and laundry. Hydrogen sulfide releases the unmistakable rotten egg smell that fills bathrooms during showers. Manganese stains plumbing black. Together, these contaminants accelerate corrosion, promote iron bacteria growth, and create water quality problems that worsen over time.

The WellFusion™ Max 90K is engineered for properties where iron, sulfur, and manganese exceed the capacity of standard filtration systems. This is not a partial solution. It oxidizes dissolved contaminants, filters oxidized particles, and neutralizes odor-causing compounds before water reaches a single fixture. To better understand how these contaminants affect your home, read about iron and rust stain removal solutions and sulfur odor removal for well water.

Katalox Light and INDOCARB E124: The Certified Engineering

At the core of this system lies Katalox Light catalytic media, a composite filtration material that removes dissolved and oxidized iron, manganese, hydrogen sulfide, and arsenic without requiring permanganate regeneration. Unlike coated media that degrades under aggressive water conditions, Katalox Light maintains structural integrity and performance over extended service cycles. This media bed is housed in a NSF/ANSI certified 16" × 53" mineral tank with 2.5 cubic feet of filtration capacity, supporting flow rates up to 27 gallons per minute at 15 psi pressure drop.

The second stage utilizes INDOCARB E124 granular activated carbon, a high-performance media that reduces volatile organic compounds, chlorinated hydrocarbons, and disinfection byproducts while polishing taste and odor. The system operates through a Clack WS1 control valve, precision-engineered in the USA to automate backwash cycles based on water usage and time intervals. This valve ensures consistent regeneration without manual intervention, reducing maintenance demands while extending media life.

The entire assembly is built in Florida using ISO 9001 certified components that meet NSF/ANSI Standard 372 for lead-free compliance. This is not generic filtration. This is Proudly Made in the USA equipment designed for high-concentration well water challenges where inferior systems fail within months.

Pure Water Living: The Transformation

After installation, the change is immediate. Showers no longer release sulfur vapors. Laundry emerges white, not orange. Drinking water tastes neutral and clean. The WellFusion™ Max 90K removes contaminants at the molecular level, protecting water heaters, fixtures, and appliances from ongoing corrosion and staining. Guests no longer notice odor. Plumbing operates efficiently. Water pressure remains consistent across all fixtures.

This system supports households with 4 to 6 occupants, 4 to 5 bathrooms, and up to approximately 3,600 square feet. It is designed for three-story homes with standard municipal or well pressure (50 to 70 PSI) and handles seasonal demand fluctuations without performance degradation. Service life exceeds 10 years when maintained according to manufacturer guidelines. Backwash cycles are fully automated. Media replacement is straightforward. The system operates quietly in the background, delivering results you see, smell, and taste every day. Pure Water. Pure Trust.

Performance

• Ideal For: Three-story homes (with standard water pressure 50–70 PSI)
• System Capacity: 90,000 Grains
• Occupants: 4-6
• Household Size: Up to ~3,600 sq ft
• Number of Bathrooms: 4-5
• Media Volume: 2.5 Cu.Ft
• Media Type: Carbon - INDOCARB® E124, Carbon - Katalox Light® Advanced Filtration Media for Iron, Manganese and Hydrogen Sulfide Removal
• Service Life: ~ 10-15 years
• Max Flow Rate: 27 gpm at 15 psi drop
• Backwash: 5.3 gpm

Technical Specifications

• Valve: Clack WS1
• Input & Output Line Size: ¾” or 1” NPT
• Tank Dimensions: 16"x53"
• Product Dimensions: 13"L × 13"W × 61"H
• Product Weight: 368 lb, 167 kg
• Material: N/A
• Power Requirement: 110V Standard (Plug-In Transformer Included)
• Bypass Valve Included: Yes
• Operating Pressures: Requires 20–80 psi supply pressure
• Operating Temperatures: 40° - 110° F
• Drain Line: ¾” or 1” NPT

Additional Components

• 1/2" Dia drain line tube 10' in length

Installation Time & Requirements

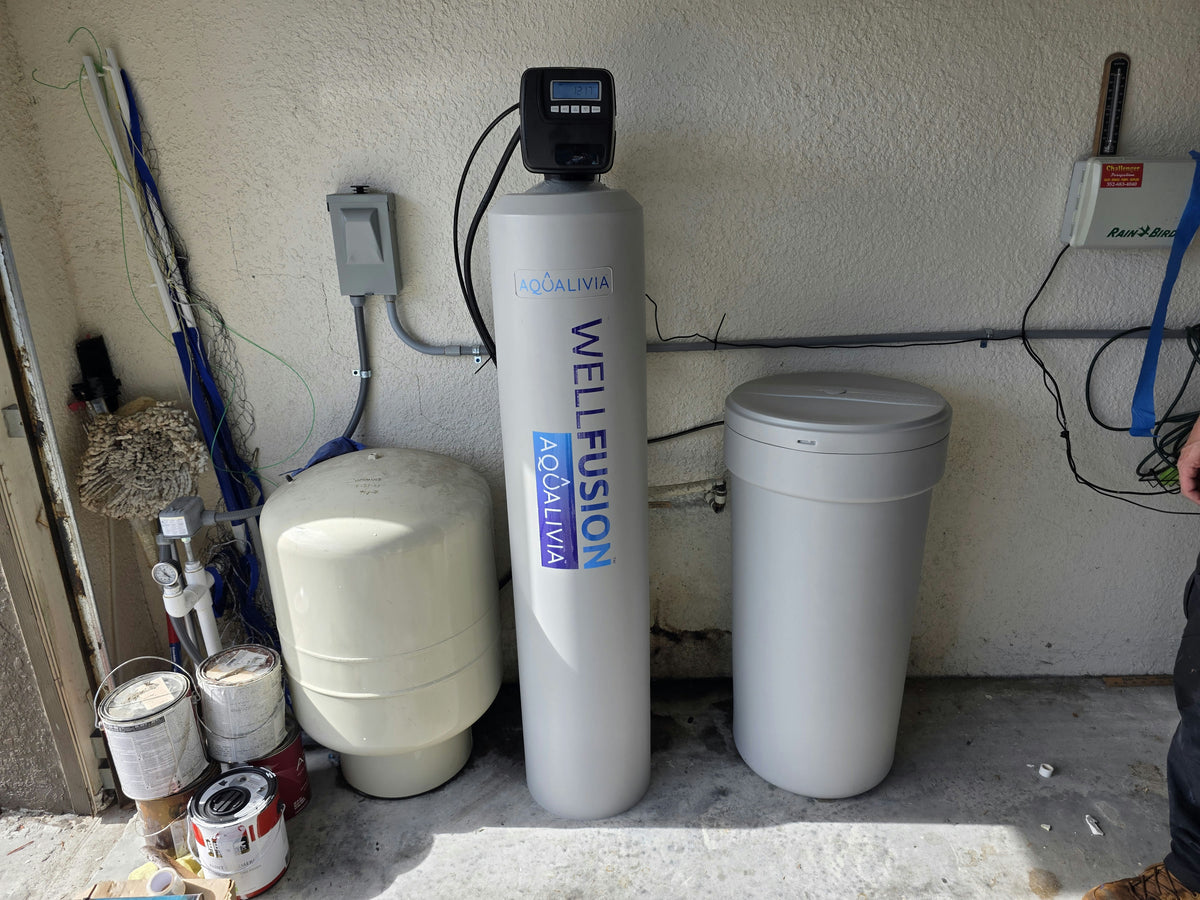

• Installation Type: Whole-House Point of Entry
• Estimated Installation Time: A professional WellFusion™ system installation typically takes 2 to 4 hours, but this can vary depending on the complexity of the job and the type of system. Replacing an existing unit might take less time, sometimes as little as an hour, while a new installation with additional plumbing will take longer.
