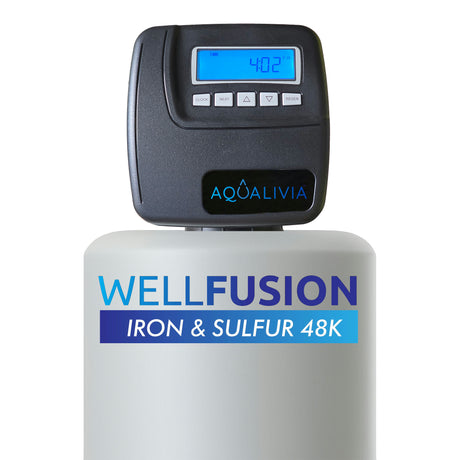

WellFusion™ Pro 48K Iron & Sulfur Well System

The Hidden Cost of Untreated Well Water

Iron and sulfur are two of the most stubborn and damaging contaminants found in private well systems. When left unchecked, they destroy fixtures, stain everything they touch, and make water completely unusable. Iron oxidizes into rust-colored deposits that permanently discolor sinks, toilets, and laundry. Sulfur, in the form of hydrogen sulfide gas, produces a rotten egg odor so strong it ruins showers, drinking water, and cooking. Together, these contaminants accelerate corrosion, promote bacterial growth, and create water conditions that no standard filter or softener can handle alone.

Most homeowners discover these problems after repeated filter failures and wasted money on partial solutions. Iron fouls softener resin. Sulfur returns hours after oxidation. Sediment clogs valves. Bacteria thrive in untreated systems. The result is ongoing frustration and expensive equipment replacement. For guidance on addressing iron staining and rust removal, proper filtration design must begin with complete water chemistry analysis.

The Engineering Behind WellFusion™ Pro 48K

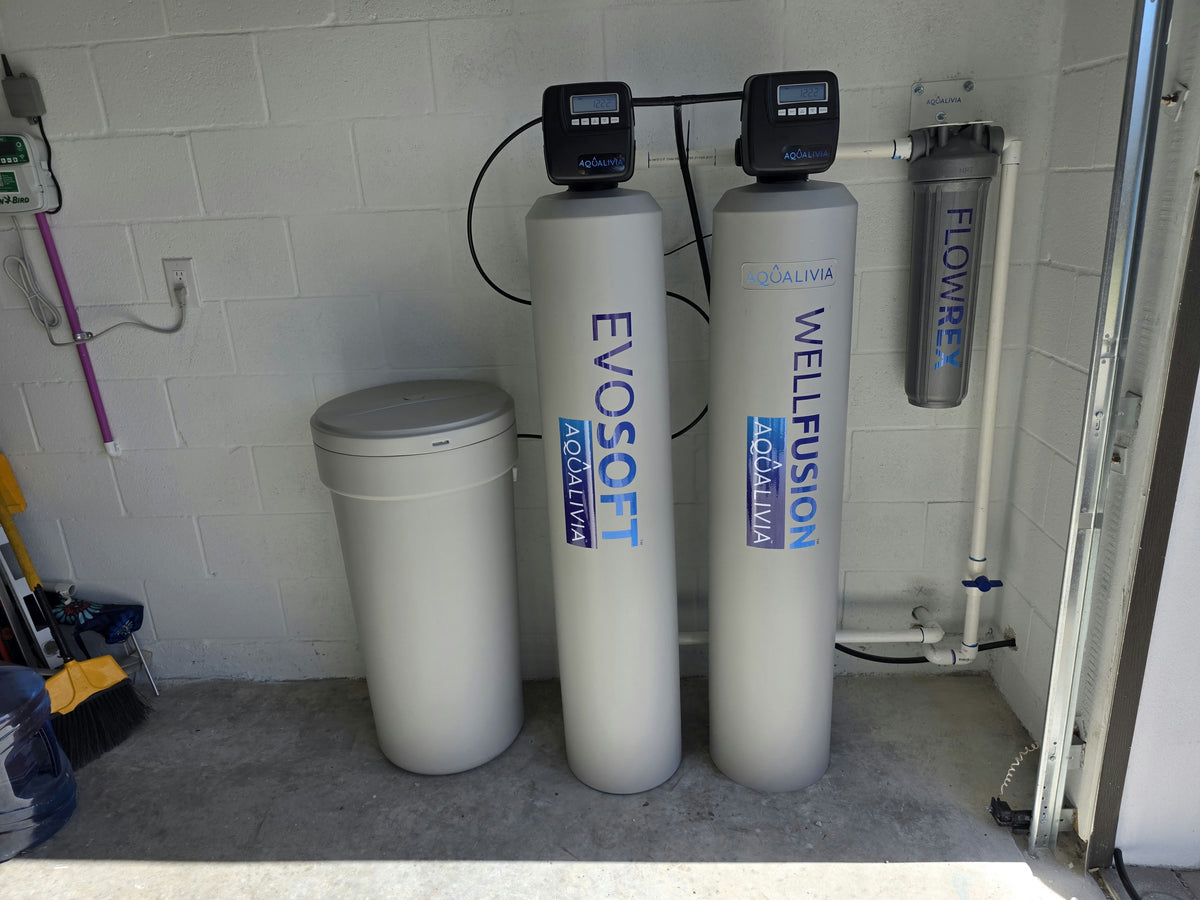

The WellFusion™ Pro 48K Iron & Sulfur Well Water Whole House Bundle integrates four treatment stages into a single, coordinated system built to handle the most challenging well water conditions. Every component is selected, sequenced, and calibrated to work together, preventing the common failures that occur when mismatched equipment is pieced together without professional design.

Stage 1: AQUAREX™ Sediment Filtration removes sand, silt, and particulates before they clog downstream equipment. High-capacity media protects sensitive valves and extends system lifespan.

Stage 2: AquaProTec™ Katalox Light® Catalytic Carbon Filter oxidizes and captures dissolved iron and manganese while simultaneously neutralizing hydrogen sulfide odors. This advanced media targets multiple contaminants in one pass, eliminating staining and odor at the source. For those evaluating sulfur issues separately, our dedicated sulfur odor removal solutions provide additional context on hydrogen sulfide treatment strategies.

Stage 3: EVOSOFT™ Water Softener (48,000 Grains) uses cross-linked resin to remove calcium and magnesium hardness, preventing scale buildup inside pipes, water heaters, and appliances. Proper sequencing ensures resin remains protected from iron fouling.

Stage 4: AquaVRay™ UV Disinfection System provides chemical-free protection against bacteria, viruses, and pathogens. UV treatment ensures every drop of water entering your home meets microbiological safety standards.

Every component is Made in USA and backed by NSF/ANSI certifications. The Clack WS1 control valves deliver programmable, efficient backwashing cycles that keep media beds clean and reactive. This system is engineered for households up to 1,500 square feet with 1–2 bathrooms and 2–3 occupants, supporting flow rates up to 27 gpm at 15 psi drop.

Pure Water Living

Once installed, the WellFusion™ Pro 48K transforms every water use in your home. Showers no longer smell like sulfur. Laundry emerges white and clean, free from rust stains. Drinking water tastes neutral and fresh. Water heaters operate efficiently without scale insulation. Fixtures stay clear. Skin and hair feel naturally soft. Appliances last longer. Maintenance becomes predictable. You stop worrying about what's in your water and start trusting it.

The system operates automatically, requiring only routine salt replenishment and periodic UV lamp replacement. No daily adjustments. No chemical handling. No guesswork. Just consistent, clean, safe water throughout your entire home. Pure Water. Pure Trust.

Performance

• Ideal For: Two-story homes (with standard water pressure 50–70 PSI)
• System Capacity: 48,000 Grains
• Occupants: 2-3
• Household Size: Up to ~1,500 sq ft
• Number of Bathrooms: 1-2
• Media Volume: 1.5 Cu.Ft
• Media Type: Carbon - Katalox Light®, Water Softener - Aldex C-800 8% Crosslinked Resin
• Service Life: ~ 10-15 years
• Max Flow Rate: 27 gpm at 15 psi drop
• Backwash: 2.7 gpm

Technical Specifications

• Valve: WS-Clack WS1 Valve, Carbon Clack WS1 Valve
• Input & Output Line Size: ¾” or 1” NPT
• Tank Dimensions: 10"x54"
• Brine Tank Size: 18"X36" Gray
• Product Dimensions: 60"L × 24"W × 65"H
• Product Weight: 222 lb, 101 kg
• Material: N/A
• Power Requirement: 110V Standard (Plug-In Transformer Included)
• Bypass Valve Included: Yes
• Drain Line: ¾” or 1” NPT

Additional Components

• 1/2" Dia drain line tube 20' in length

Installation Time & Requirements

• Installation Type: Whole-House Point of Entry
• Estimated Installation Time: A professional water softener installation typically takes 3 to 6 hours, but this can vary depending on the complexity of the job and the type of system. Replacing an existing unit might take less time, sometimes as little as an hour, while a new installation with additional plumbing will take longer.
