WellFusion™ Ultra 64K Sulfur Complete Well System

The Hidden Chemistry Behind Well Water Odor

When your water smells like rotten eggs, you are not dealing with a minor annoyance. Hydrogen sulfide gas forms when sulfur-reducing bacteria interact with decaying organic matter deep underground. Even at concentrations below 1 ppm, this gas creates an unmistakable odor that makes every shower, load of laundry, and glass of water unbearable. The problem intensifies when water is heated, releasing sulfur vapors that fill bathrooms and kitchens.

Sulfur in well water rarely appears alone. It often coincides with iron contamination, creating orange-brown staining, metallic taste, and accelerated corrosion inside water heaters and plumbing. When left untreated, sulfur and iron combine to promote bacterial growth and biofilm formation that standard softeners cannot address.

This is why the WellFusion™ Ultra 64K Sulfur Well Water Bundle was engineered as a coordinated, four-stage system. It does not mask odors or treat symptoms. It neutralizes hydrogen sulfide at the molecular level while addressing sediment, hardness, and microbial threats before water reaches your home. To better understand how sulfur and iron interact in private well systems, read about iron and sulfur combo water systems.

The Engineering Behind Lasting Odor Control

The WellFusion™ Ultra 64K begins with the AQUAREX™ Sediment Filter, capturing sand, silt, and particulates down to 5 microns before they reach downstream components. This protects the catalytic carbon bed and prevents media fouling that shortens system life.

Stage two deploys 2 cubic feet of INDOCARB® E124 Catalytic Carbon inside a 12" × 52" NSF-certified mineral tank. Unlike standard activated carbon, catalytic carbon oxidizes hydrogen sulfide into elemental sulfur, which is then captured and backwashed away. This German-engineered media handles up to 27 gpm at 15 psi drop, ensuring consistent odor removal even during peak household demand. The Clack WS1 control valve automates backwash cycles to maintain media efficiency without manual intervention.

Stage three addresses hardness with Aldex C-800 8% Crosslinked Resin, a premium ion exchange media rated for 64,000 grains of capacity. This cross-linked resin resists fouling from trace iron and sulfur, delivering reliable softening performance in challenging well water conditions where standard resins fail. The system regenerates using salt from an 18" × 36" brine tank, removing calcium and magnesium before they form scale inside pipes and appliances.

The final stage integrates the AquaVRay™ UV System, delivering 30 mJ/cm² of germicidal UV-C light at 254 nm to inactivate bacteria, viruses, and sulfur-reducing microorganisms. This chemical-free barrier ensures microbial safety without altering taste or introducing disinfection byproducts. All components are Made in USA and backed by ISO 9001:2000 certified manufacturing standards.

Pure Water Living

When sulfur odors disappear, showers become comfortable again. Laundry stops absorbing smells. Coffee tastes clean. Guests no longer hesitate at the tap. Hard water scale stops forming inside water heaters, extending equipment life and reducing energy waste. Fixtures stay cleaner, and soap works the way it should.

The WellFusion™ Ultra 64K is designed for homes up to 2,200 square feet with 2 to 4 occupants and standard water pressure between 50 and 70 PSI. The system installs at the point of entry using ¾" or 1" NPT connections, treating all water before it enters household plumbing. A bypass valve is included for maintenance, and the plug-in 110V transformer powers automated operation without complex wiring.

This is engineering that restores confidence in every drop. Pure Water. Pure Trust.

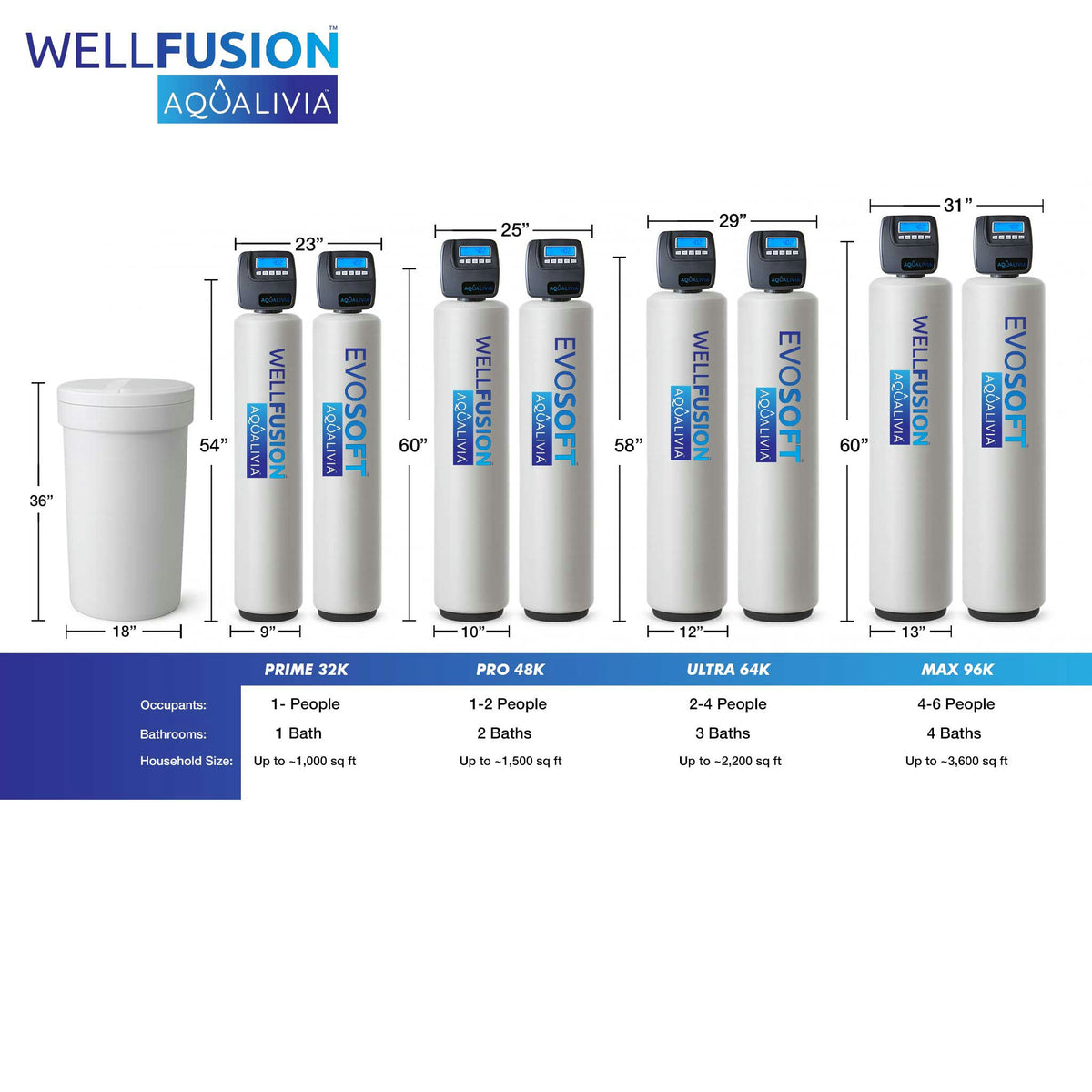

Performance

• Ideal For: Two-story homes (with standard water pressure 50–70 PSI)
• System Capacity: 64,000 Grains
• Occupants: 2-4
• Household Size: Up to ~2,200 sq ft
• Number of Bathrooms: 2-3
• Media Volume: 2 Cu.Ft
• Media Type: Carbon - INDOCARB® E124, Water Softener - Aldex C-800 8% Crosslinked Resin
• Service Life: ~ 10-15 years
• Max Flow Rate: 27 gpm at 15 psi drop
• Backwash: 4 gpm

Technical Specifications

• Valve: WS-Clack WS1 Valve, Carbon Clack WS1 Valve
• Input & Output Line Size: ¾” or 1” NPT
• Tank Dimensions: 12"x52"
• Brine Tank Size: 18"X36" Gray
• Product Dimensions: 108"L × 36"W × 72"H
• Product Weight: 1522 lb, 690 kg
• Material: N/A
• Power Requirement: 110V Standard (Plug-In Transformer Included)
• Bypass Valve Included: Yes
• Drain Line: ¾” or 1” NPT

Additional Components

• 1/2" Dia drain line tube 20' in length

Installation Time & Requirements

• Installation Type: Whole-House Point of Entry
• Estimated Installation Time: A professional water softener installation typically takes 3 to 6 hours, but this can vary depending on the complexity of the job and the type of system. Replacing an existing unit might take less time, sometimes as little as an hour, while a new installation with additional plumbing will take longer.
