DI-Fusion™ Pro 64K Complete Commercial Deionization System

When Dissolved Ions Compromise Quality Standards

In laboratories, pharmaceutical production, and precision manufacturing, water purity is not negotiable. Dissolved ions, trace minerals, and fluctuating conductivity compromise sensitive processes, contaminate batches, and fail quality standards. Even municipal water treated for general consumption contains ionic contaminants that interfere with testing accuracy, product consistency, and equipment longevity.

Standard filtration removes particles, but ions remain dissolved and invisible. These charged minerals pass through conventional systems unchanged, leaving water technically "filtered" but chemically unacceptable for high-purity applications. When precision matters, dissolved solids must be removed at the molecular level.

In laboratories requiring near-zero conductivity water, pharmaceutical formulation demanding consistent purity, electronics manufacturing sensitive to ionic residue, medical device production with strict quality protocols, and industrial rinsing where mineral carryover causes defects, professional deionization systems deliver water measured in microsiemens, not parts per million. This bundle integrates commercial deionized (DI) water systems designed to produce ultra-pure water continuously under demanding conditions.

The Certified Engineering Behind Molecular Purity

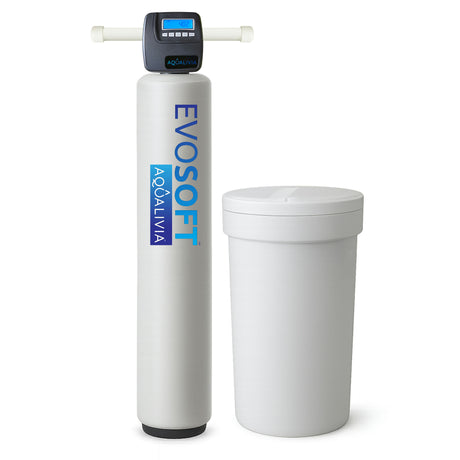

This system begins with the AQUAREX Heavy-Duty Sediment Filter, capturing particles before they reach sensitive downstream media. Sediment protection is critical in DI applications because fouling shortens resin life and increases regeneration frequency. Once particles are removed, water flows through the 64,000-grain EVOSOFT City Water Softener equipped with Aldex C-800 10% cross-linked resin. This pre-softening stage removes hardness minerals that would otherwise foul the DI resin bed, extending operational cycles and reducing system downtime.

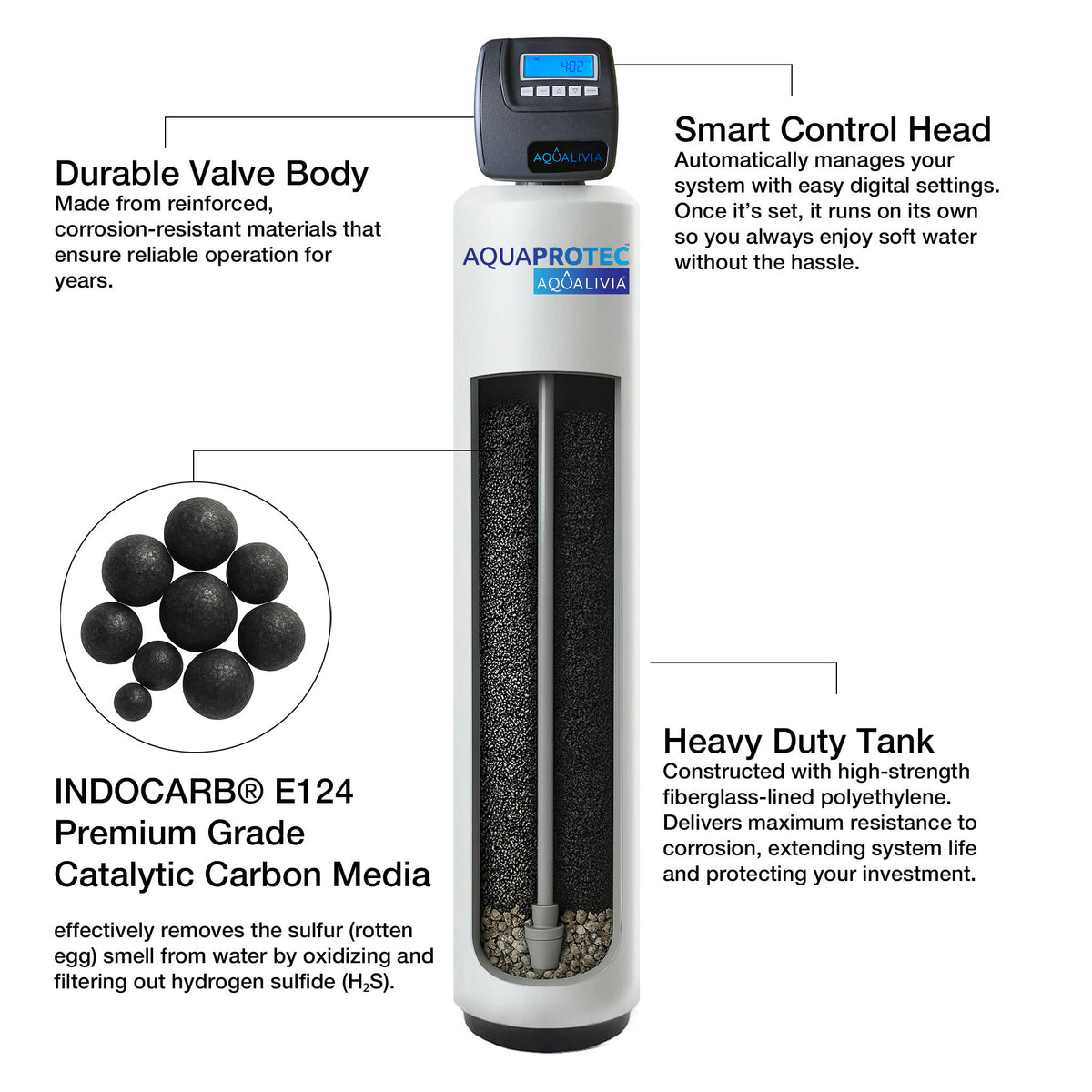

The third stage utilizes INDOCARB E124 Catalytic Carbon, an advanced media engineered to reduce chlorine, chloramines, and organic contaminants. Chlorine damages ion exchange resins, and removing it upstream protects both the softening and deionization stages. All three components are controlled by Clack WS1 valves, known for precision and durability in commercial environments. These valves are built and assembled in the USA, meeting rigorous standards for long-term reliability.

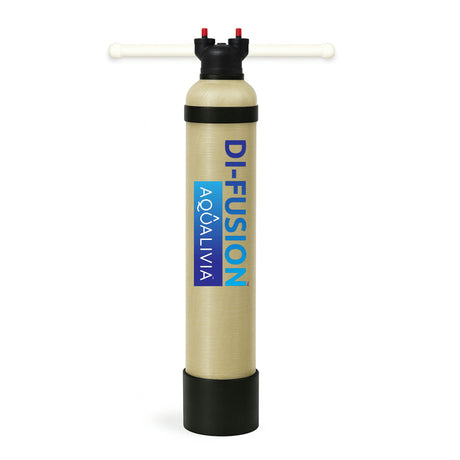

The final purification stage is the DI-FUSION Pro 64K Mixed Bed Deionization System, utilizing Purolite MB400 mixed bed resin. This resin blend removes both cations and anions simultaneously, achieving conductivity levels below 0.1 microsiemens. The system is designed for continuous operation, supporting laboratories and manufacturing environments where water purity cannot fluctuate. The AquaVRay UV System provides chemical-free disinfection as the final barrier, ensuring microbial protection without reintroducing contaminants. Every component is engineered to work together, delivering consistent ultra-pure water across shifts and production cycles. For additional commercial applications requiring specialized treatment, explore our full range of commercial water treatment solutions.

Pure Water Living

When water meets laboratory standards, processes stabilize. Equipment runs cleaner, results become repeatable, and quality control tightens. Employees trust the supply, and production schedules align with expectations. This system protects sensitive instruments, reduces rework, and maintains the purity levels that define professional operations. In environments where precision cannot be compromised, water quality becomes the foundation of reliability.

Pure Water. Pure Trust.

Performance

• Ideal For: Commercial
• System Capacity: 64,000 Grains
• Occupants: Commercial
• Household Size: Commercial
• Number of Bathrooms: Commercial
• Media Volume: 2 Cu.Ft
• Media Type: DI Mix Bed - Purolite™ MB400, Water Softener - Aldex C-800 10% Crosslinked Resin, Carbon - INDOCARB® E124
• Max Flow Rate: 27 gpm at 15 psi drop
• Backwash: 4 gpm

Technical Specifications

• Valve: WS-Clack WS1 Valve, DI-In-Out Head, Carbon Clack WS1 Valve
• Input & Output Line Size: ¾” or 1” NPT
• Tank Dimensions: DI "14x47", WS 12"x52", GUC 12"x52"
• Brine Tank Size: 18"X36" Gray
• Product Dimensions: 90"L × 34"W × 68"H
• Product Weight: 588 lb, 267 kg
• Power Requirement: 110V Standard (Plug-In Transformer Included)
• Bypass Valve Included: Yes
• Drain Line: ¾” or 1” NPT

Additional Components

• 1/2" Dia drain line tube 20' in length

Installation Time & Requirements

• Installation Type: Point of Entry
• Estimated Installation Time: A professional water softener installation typically takes 3 to 6 hours, but this can vary depending on the complexity of the job and the type of system. Replacing an existing unit might take less time, sometimes as little as an hour, while a new installation with additional plumbing will take longer.
