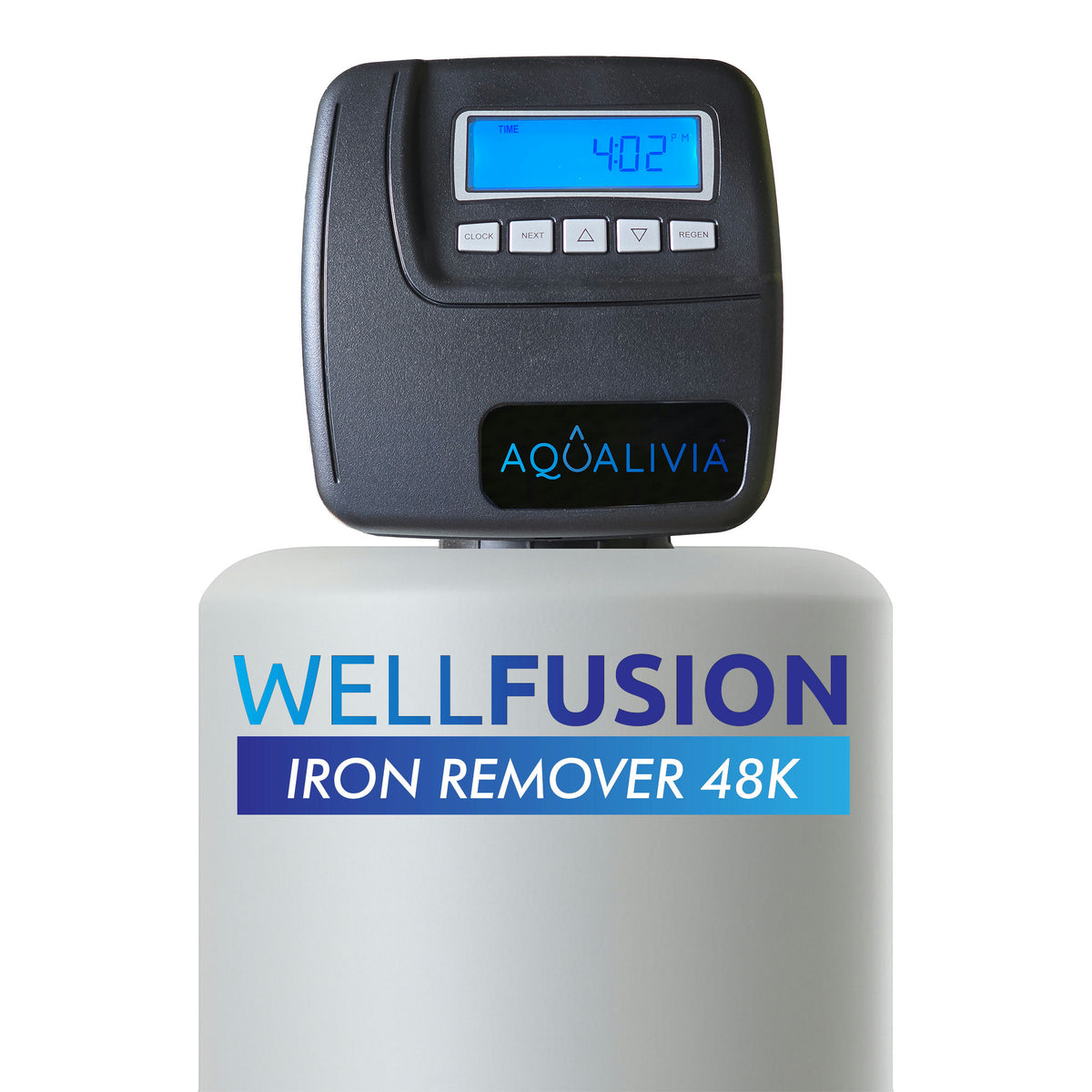

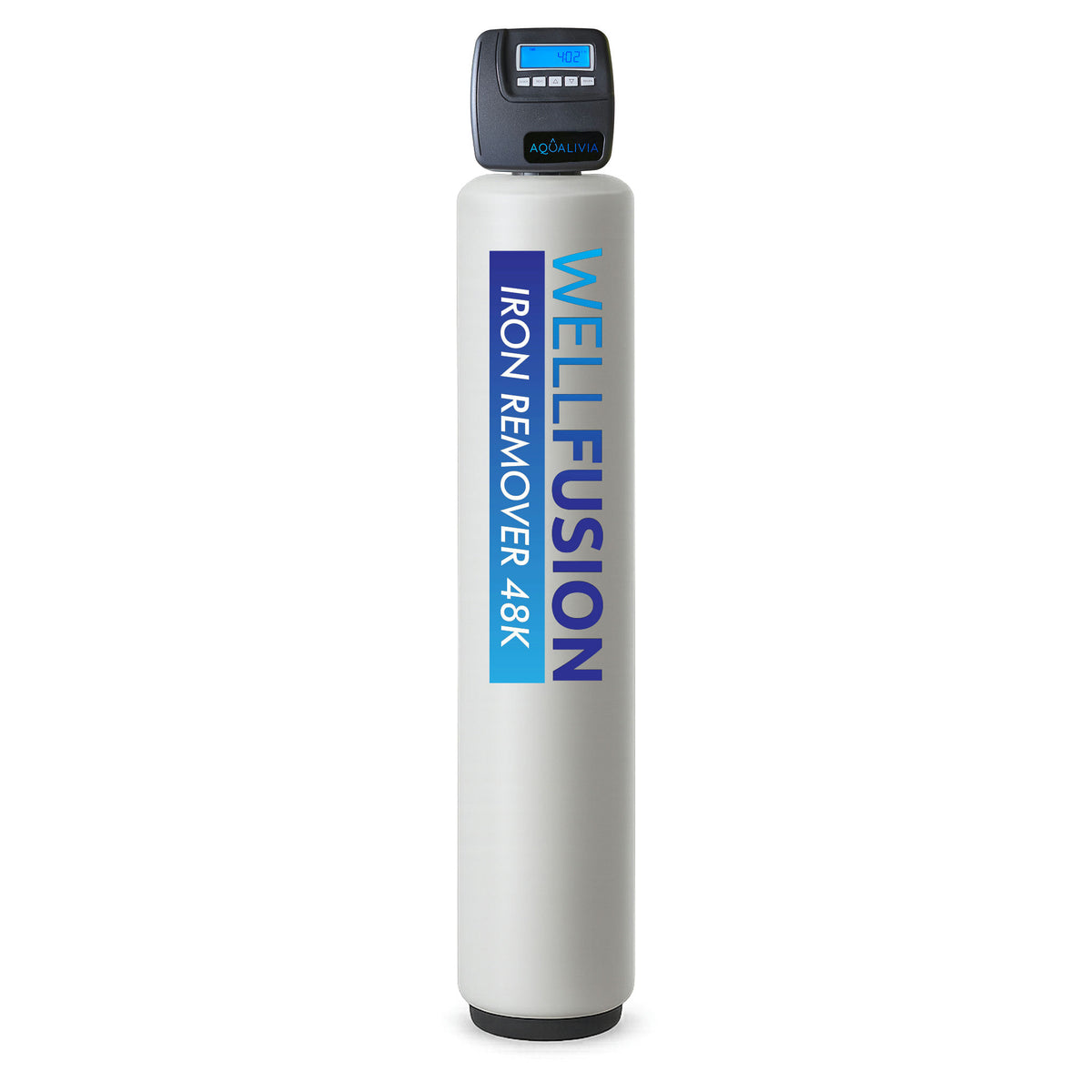

WellFusion™ Pro 48K - Well Iron Removal

The Invisible Problem

Iron in well water rarely announces itself with clarity. It arrives as a metallic aftertaste in your morning coffee, orange stains creeping across your bathroom sink, and discolored laundry that never quite looks clean. Even at concentrations below 0.3 parts per million, dissolved iron begins oxidizing the moment it contacts air, bonding to surfaces and leaving rust-colored damage that standard cleaning cannot reverse. For homeowners drawing water from private wells, iron contamination is not just a cosmetic inconvenience. It is an ongoing assault on plumbing systems, appliances, and daily comfort.

When iron levels exceed what basic filtration can handle, the damage compounds quickly. Water heaters develop sediment layers that reduce efficiency and shorten lifespan. Dishwashers and washing machines experience valve fouling and premature wear. Shower fixtures accumulate stubborn staining that resists conventional cleaners. Without targeted iron removal, these problems persist regardless of how often you scrub or how much detergent you use. That is because the issue is not on the surface, it is in the water itself.

For households managing 1 to 2 bathrooms and typical well water conditions, the WellFusion™ Pro 48K Iron Breaker delivers a certified engineering solution built specifically for this challenge. To better understand how iron interacts with other well water contaminants, explore our complete guide to iron and rust stain removal solutions.

The Certified Solution

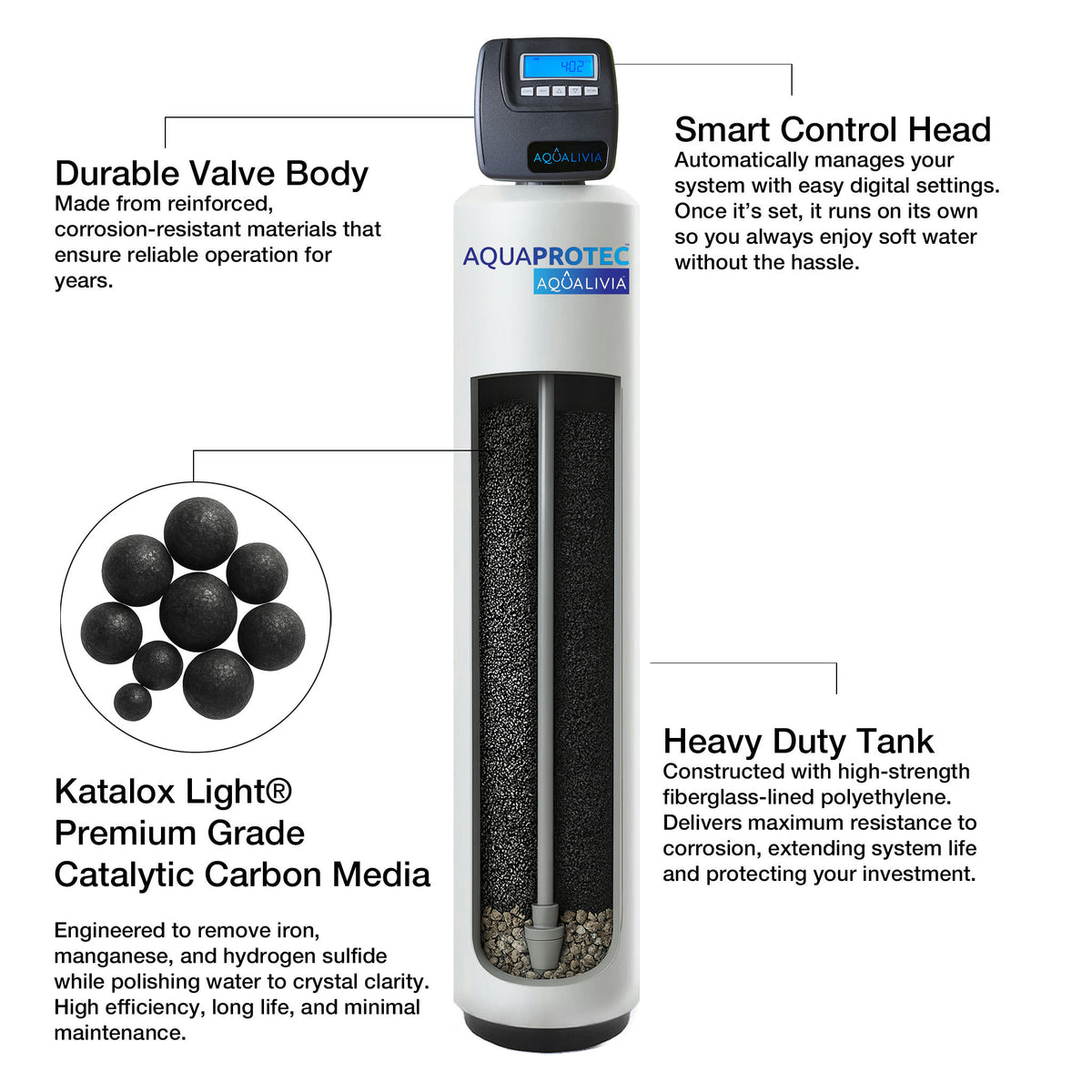

The WellFusion™ Pro 48K employs Katalox Light advanced filtration media, a catalytic material engineered to oxidize dissolved ferrous iron into filterable ferric iron without chemical additives or harsh regeneration processes. This NSF-certified media operates through manganese dioxide surface catalysis, accelerating oxidation while simultaneously capturing particulate iron, manganese, and hydrogen sulfide compounds in a single treatment stage.

Unlike traditional greensand filters that require potassium permanganate dosing, Katalox Light regenerates through simple backwashing with your existing well water. The high-capacity media bed provides reliable treatment for households with moderate iron loading and daily water usage typical of smaller homes. The system integrates a Clack WS1 control valve, an industry-standard metering valve trusted for precision cycle timing and long-term mechanical reliability in residential well water applications.

Every component is proudly manufactured in the United States using materials certified to NSF/ANSI Standard 372 for lead-free compliance and NSF/ANSI Standard 44 for water softening components. The compact 10"x54" mineral tank operates at standard residential pressures, fitting installations where space and aesthetic integration matter. This is not improvised filtration. This is engineered iron reduction built to perform under real-world well water conditions.

Pure Water Living

When iron is removed before it enters your home's plumbing system, the difference becomes immediately visible. Drinking water loses its metallic taste. Laundry emerges bright and stain-free. Bathroom fixtures stay cleaner longer, and the orange residue that once accumulated daily no longer appears. But the benefits extend far beyond what you can see. Inside your water heater, scale formation slows. Dishwasher spray arms remain clear. Showerheads maintain consistent flow. Every appliance that touches water operates as designed, without the silent burden of iron-induced wear.

The WellFusion™ Pro 48K is designed for households with 1 to 2 bathrooms, supporting typical daily water usage for 2 to 3 occupants in homes up to approximately 1,500 square feet. Automatic regeneration cycles maintain media performance without manual intervention, and the included bypass valve allows for straightforward maintenance when needed. Installation typically requires 2 to 4 hours by a qualified technician, depending on existing plumbing configuration and accessibility.

This system delivers a service life of 10 to 15 years under normal operating conditions, with routine maintenance limited to periodic injector cleaning and backwash verification. That is the AQUALIVIA™ standard: engineered solutions that perform quietly, reliably, and without compromise. Pure Water. Pure Trust.

Completing Your Water Strategy

While the WellFusion™ Pro 48K removes iron, manganese, and hydrogen sulfide compounds effectively, well water treatment rarely ends with a single system. Iron breaker filtration protects against staining and taste issues, but it does not address hardness minerals that cause scale buildup, nor does it provide microbial protection required for private well supplies.

To ensure comprehensive water safety, consider pairing this iron breaker with a whole house UV purification system for chemical-free bacterial protection at the final point of entry. For households managing both iron and hardness, explore our well water softeners designed to operate downstream of iron filtration for complete plumbing protection. The right combination depends on your specific water chemistry, not guesswork, but informed design.

Performance

• Ideal For: Two-story homes (with standard water pressure 50–70 PSI)
• System Capacity: 48,000 Grains
• Occupants: 2-3
• Household Size: Up to ~1,500 sq ft
• Number of Bathrooms: 1-2
• Media Volume: 1.5 Cu.Ft
• Media Type: Carbon - Katalox Light® Advanced Filtration Media for Iron, Manganese and Hydrogen Sulfide Removal
• Service Life: ~ 10-15 years
• Max Flow Rate: 27 gpm at 15 psi drop
• Backwash: 2.7 gpm

Technical Specifications

• Valve: Clack WS1
• Input & Output Line Size: ¾” or 1” NPT
• Tank Dimensions: 10"x54"
• Product Dimensions: 10"L × 10"W × 61"H
• Product Weight: 132 lb, 60 kg
• Material: N/A
• Power Requirement: 110V Standard (Plug-In Transformer Included)
• Bypass Valve Included: Yes
• Operating Pressures: Standard water pressure 50–70 psi
• Operating Temperatures: 40° - 110° F
• Drain Line: ¾” or 1” NPT

Additional Components

• 1/2" Dia drain line tube 10' in length

Installation Time & Requirements

• Installation Type: Whole-House Point of Entry
• Estimated Installation Time: A professional WellFusion™ system installation typically takes 2 to 4 hours, but this can vary depending on the complexity of the job and the type of system. Replacing an existing unit might take less time, sometimes as little as an hour, while a new installation with additional plumbing will take longer.
